Woodpecker® Ultrasonic Endodontic Retropreparation Tips Fit for DTE, NSK, Satelec Scaler

ED10--Used to polish the root canal in the retrograde preparation of root canals. The length of tip slender part is 4.5mm.

ED10D--Diamond-coated(40m) instrument for high efficiency root planning in the retrograde preparation of root canals. The length of the diamond-coated on tip is 3.3mm.

ED11--Used to polish the root canal in the retrograde preparation of root canals. The length of tip slender part is 3.5mm.

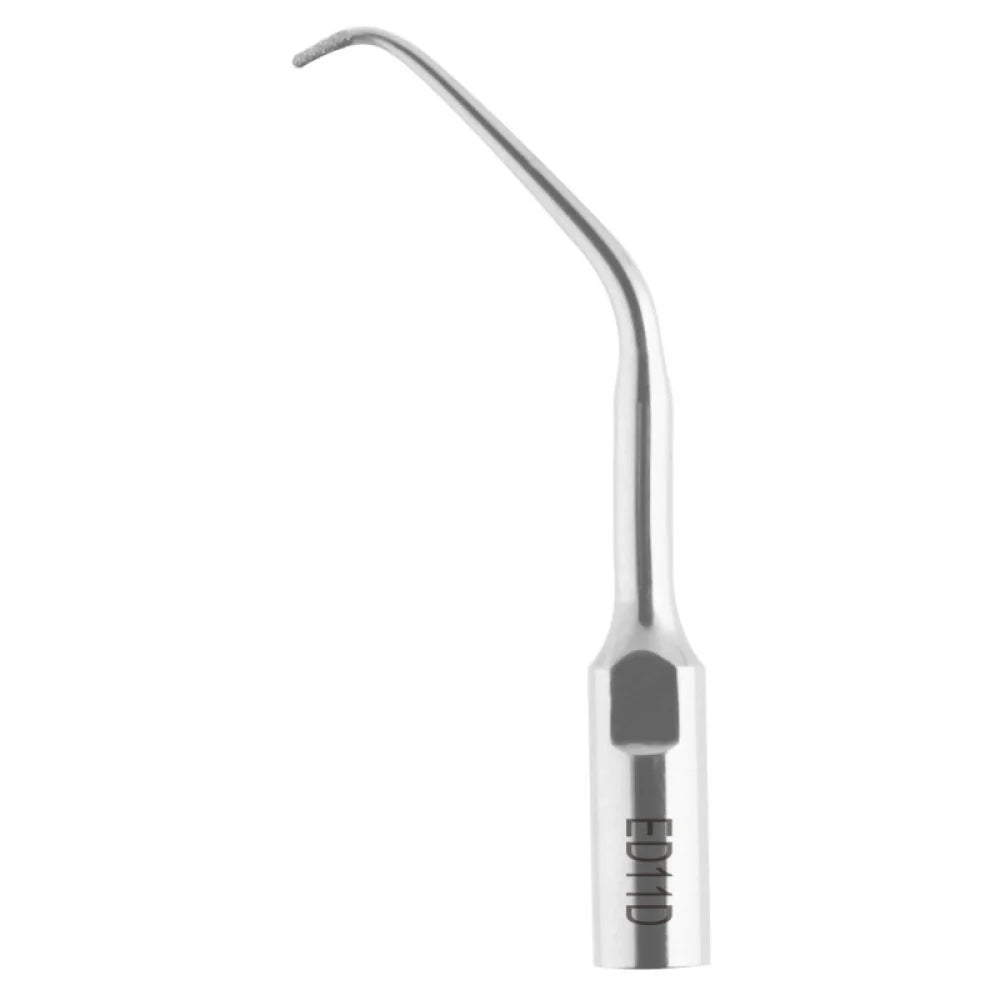

ED11D--Diamond-coated(40m) instrument for high efficiency root planning in the retrograde preparation of root canals. The length of the diamond-coated on tip is 2.2mm.

ED19D--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 3mm, and the diameter of sand is 30μm.Normally used for retropreparation of front teeth.
Use:
Used in E mode of D600, D600LED; recommended power level: level 1~7.

ED20D--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 6mm, and the diameter of sand is 30μm.Normally used for retropreparation of front teeth.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED21LD--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 3mm, and the diameter of sand is 30μm. Bent to left. Used in premolars and molars.
Use: Used in E mode of D600, D600 LED; recommended power level: level 1~6.

ED21RD--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 3mm, and the diameter of sand is 30μm. Bent to right. Used in premolars and molars.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED22D--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 4mm, and the diameter of sand is 30μm. Used in molar teeth.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED23D--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 9mm, and the diameter of sand is 30μm. Mainly used in front teeth. Used for complicated case,and it can prepared to 9mm in retropreparation operation.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED24D--Used for efficient apex modification in retropreparation. The length of diamond-coated part is
5mm, and the diameter of sand is 30μm. Mainly used in front teeth.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED25LD--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 5mm, and the diameter of sand is 30μm. Bent to left. Used in premolars and molars.
Use:
Used in E mode of D600, D600 LED; recommended power level: level 1~7.

ED25RD--Used for efficient apex modification in retropreparation. The length of diamond-coated part is 5mm, and the diameter of sand is 30μm. Bent to right. Used in premolars and molars.
Use:
Used in E mode of D600, D600LED; recommended power level: level 1~7.
