Description
DSI Implant & Screw Removal Kit is designed specifically for the extraction of broken, ill-fit, or misplaced implants. As well as removing and extracting a broken or fractured fixation screw from the implant's inner thread. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the patient. When the broken screw is lifted from the implant it can then be replaced by a new prosthetic solution with a new fixation screw.
The kit includes extraction drills that are able to fit most of the platforms and implant sizes available on the dental market. It also includes reverse and tap drills for extracting broken and fractured screws from the implants. The tapered body of the removal drill tools engages with the internal threads of the implant and the screw and allows easy and fast removal. Any sort of implant can be extracted including the ones that are already osseointegrated into a bone structure.
The Implant removal drills can be used with a designated ratchet located in the kit, or hand adapter.
The screw removal drills can be used with any contra-angle handpiece and are designed with a universal latch-type RA connection.
The kit includes guides that cover almost all the platforms. These guides will help you to remove the broken screw in an advanced technique when the regular means will not work for some reason. The guides center the reverse drill and stabilize it during the procedure, so you will be able to perform with filigree accuracy. After drilling out the broken screw you can get it out by the regular means using the removal drill.
Indications:
- Removal of failed, misplaced, or broken implants.
- Removal of broken and fractured screws
- Drilling out broken screws that cannot be extracted with a regular removal drill
- Forward engagement with the implant inner thread without surgical intervention.
Features & Benefits:
- Easy and fast removal on any implant, including the ones that are already osseointegrated into a bone structure
- Simple removal of all kinds of fixation screws, broken and fractured alike
- No bone damage or serious trauma for patients
- No need for surgical intervention, trephine drills, or additional units
- When the broken screw is lifted from the implant it can then be replaced by a new prosthetic solution with a new fixation screw
- Applicable for a large variety of implant types, and diameters
- Removes failed implants without compromising surrounding bone or damaging neighboring structures
- Fast, reliable, and cost-effective solution
- Can be used with a ratchet, hand adapter, or with a contra-angle handpiece
Technical information For Implant removal drills:
- Material: Stainless steel
- External device connection type: Ratchet square Ø4.0mm
- Additional adapters: Manual adapter
- Length of the removal units: 22mm
- Autoclavable and reusable
Compatibility:
- FRD-01: Used for implants with diameters between 3.5-4.5mm
- FRD-02: Used for implants with a diameter larger than 4.5mm
Technical information For screw removal drills:
- D-REM08: Remove drill - used for grasping and removing the broken screw out of the implant
- D-RED08: Reverse drill - used for drilling out a hole in a broken screw
- TD-08: Tap drill - used for removing a broken screw with a problematic thread
- Material: Stainless steel
- External device connection type: Latch-type RA
- Length of the removal units: 30mm, 32.5mm
- Autoclavable and reusable
- Compatibility: Compatible with any screw system

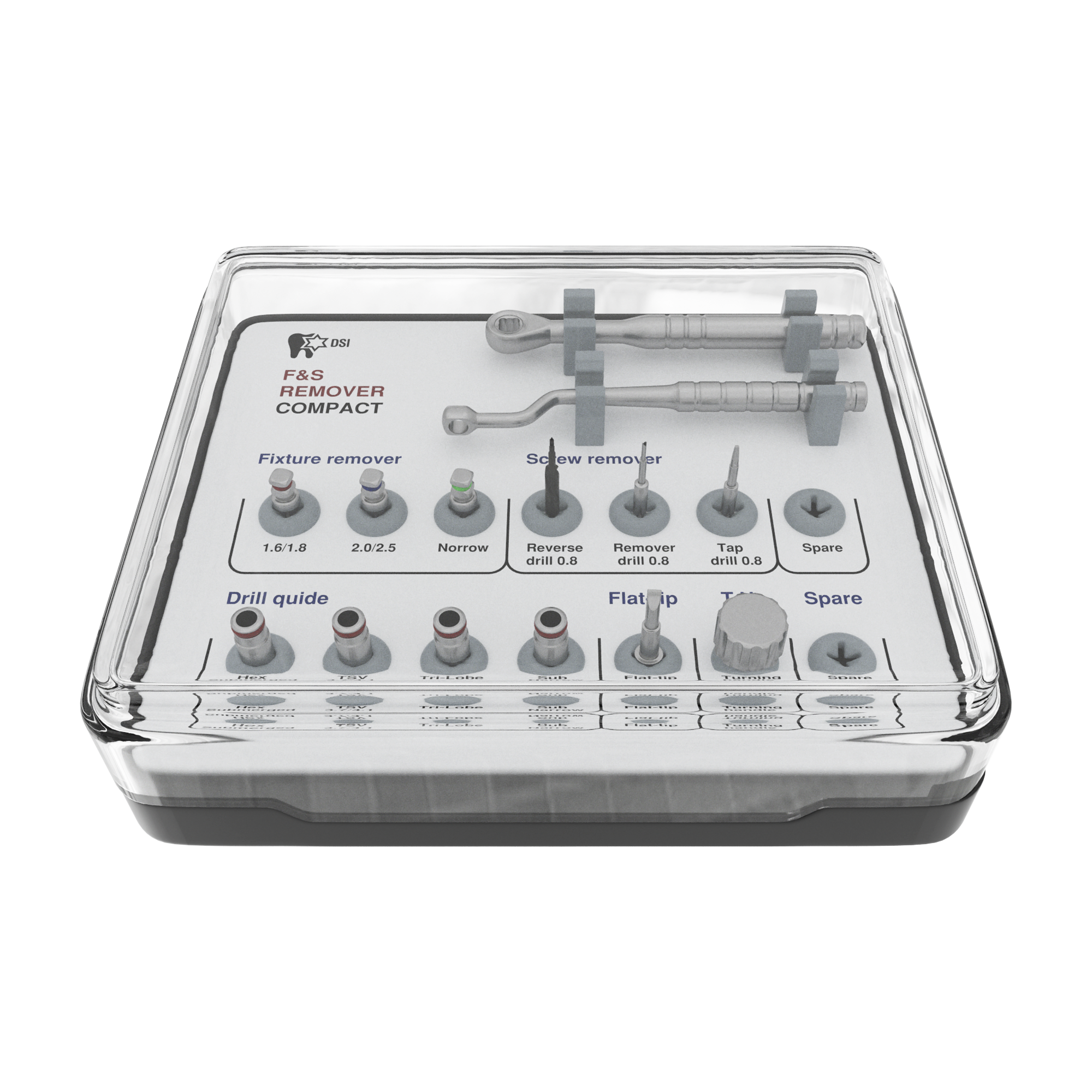

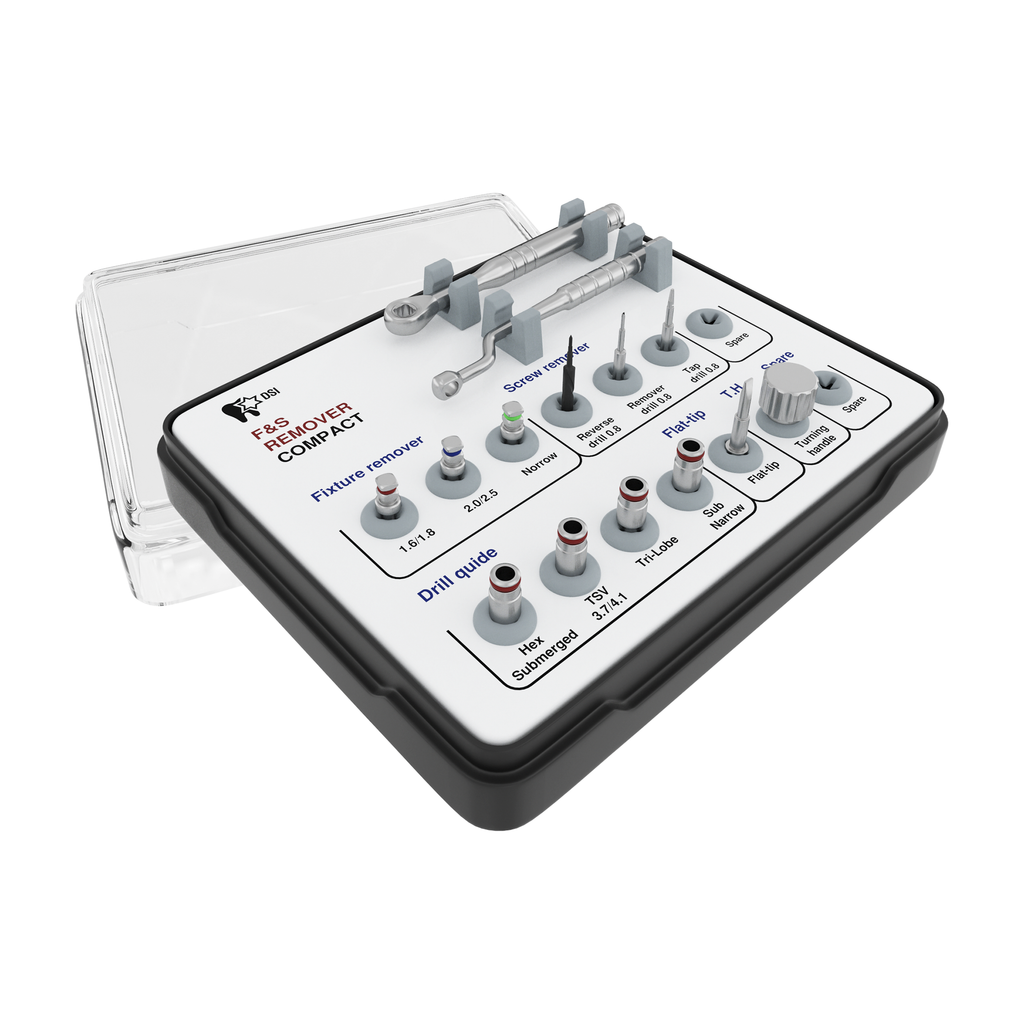

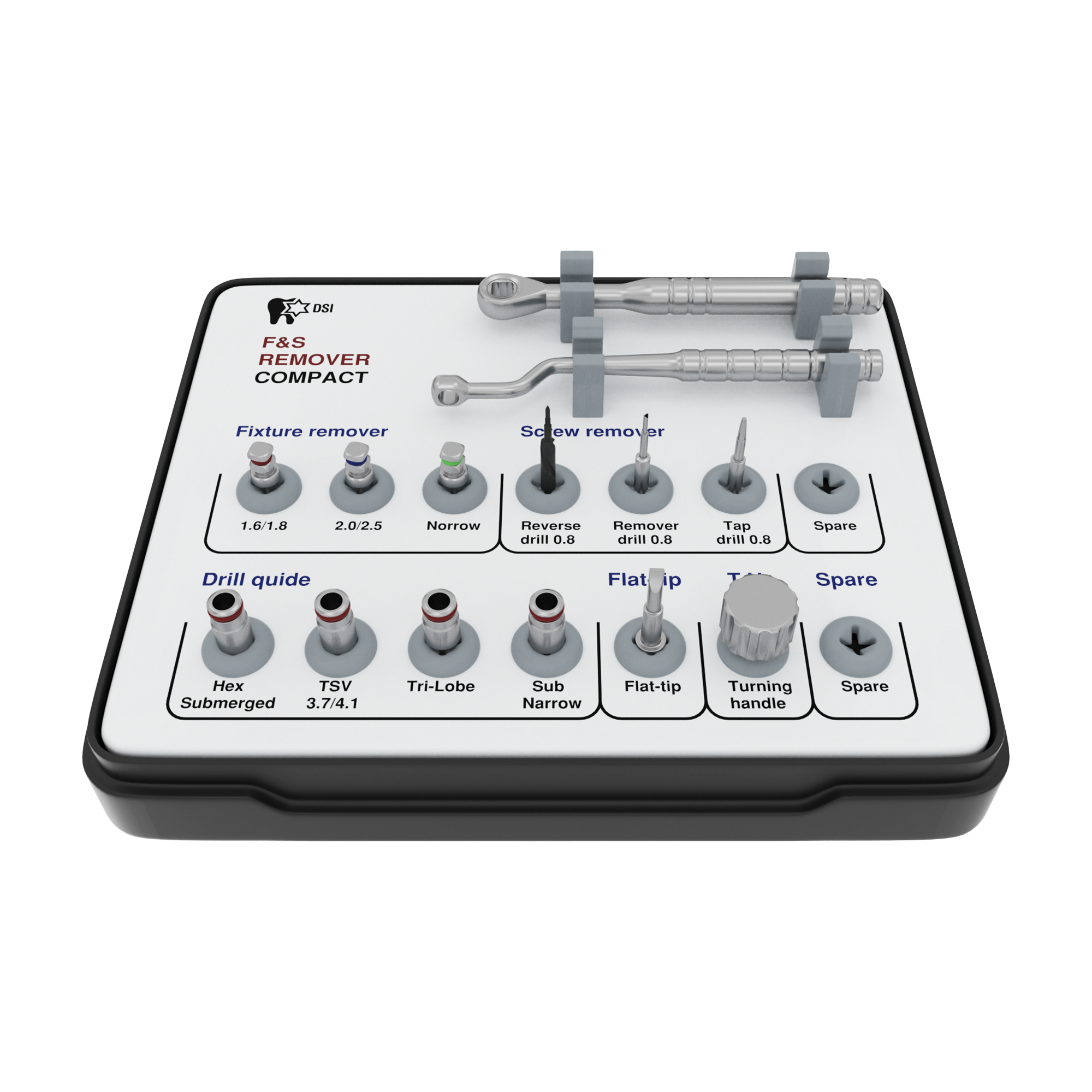

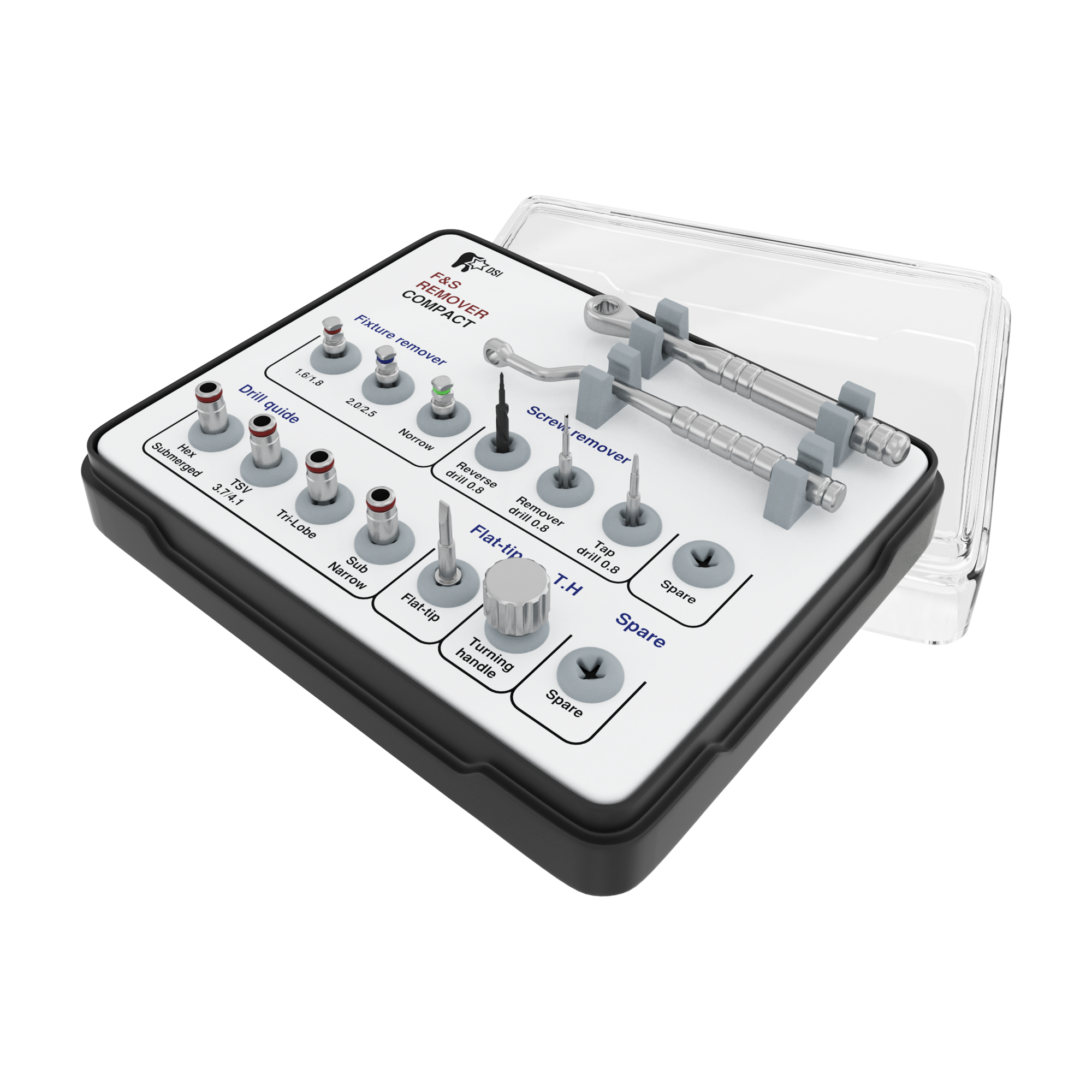

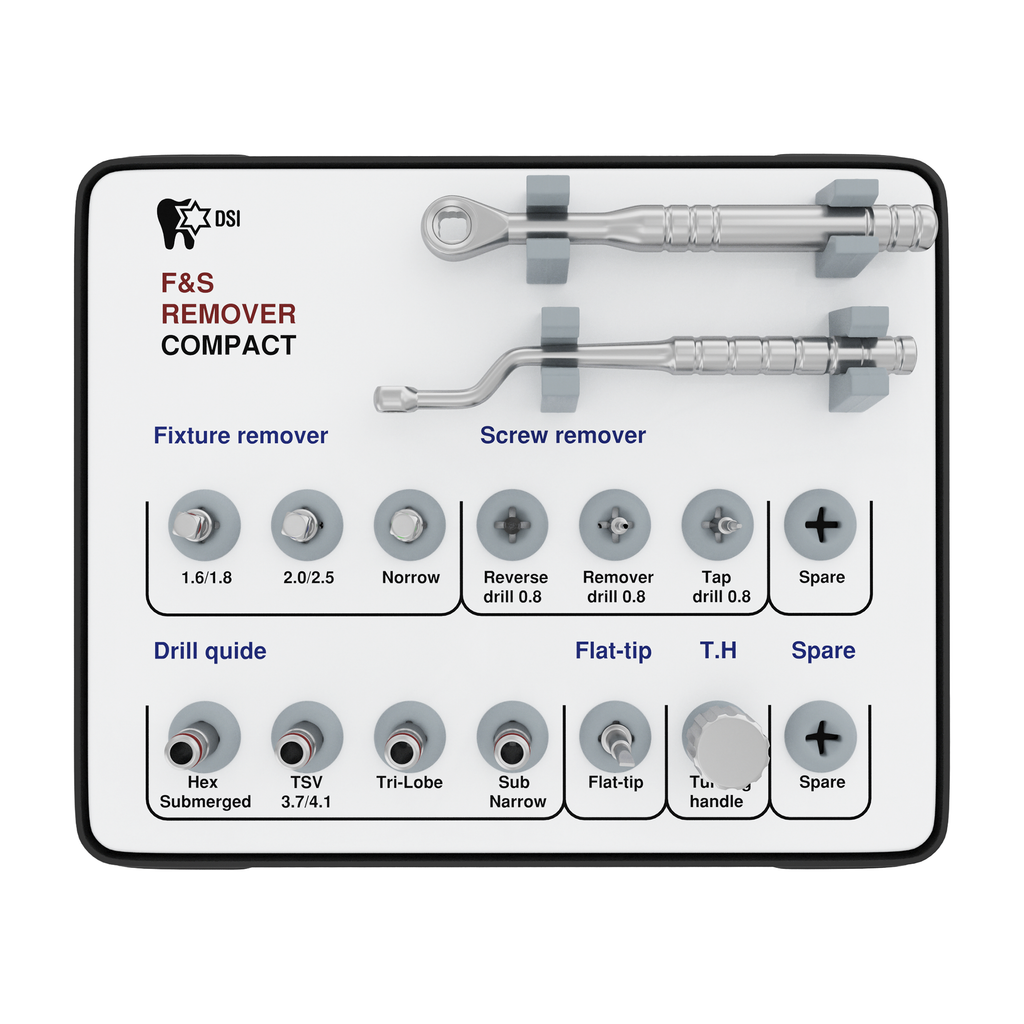

The kit includes all the following items:
- FRD-01: Implant remover Ø1.6/1.8mm (2pcs)
- FRD-02: Implant remover Ø2.0/2.5mm (2pcs)
-
D-REM08: Remove drill Ø0.8mm L 32.5mm (1pcs)
-
D-RED08: Reverse drill Ø0.8mm L 30mm (1pcs)
- TD-08: Tap drill Ø0.8mm L 30mm (1pcs)
- TH-03: Manual adapter (turning handle) (1pcs)
- FTD-01: Flat tip driver Ø2.5mm L 26mm (1pcs)
- GH-01: Guide holder (1pcs)
- SDWRH-02: Wrench ratchet - length 110mm (1pcs)
-
G-HS: Hex submerged guide (1pcs)
-
G-TSV: TSV 3.7/4.1 guide (1pcs)
-
G-TRI: Tri-lobe guide (1pcs)
- G-SN: Submerged narrow guide (1pcs)
Guides compatibility:
- G-HS: Hex submerged - Nobel Active® / DSI Conical®
- G-TSV: TSV 3.7/4.1 - Zimmer® TSV / Biohorizons® / MIS® / Implant Direct® Legacy / DSI® Hex
- G-TRI: Tri-lobe - Nobel® TriLobe
- G-SN: Submerged narrow - Hiossen® / Osstem®
