DSI Premium Straight Multi Unit Abutment (M1.6) 5.0mm Full Set - Internal Hex Ø2.42mm
Description
The DSI Premium Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals
- DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level
DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

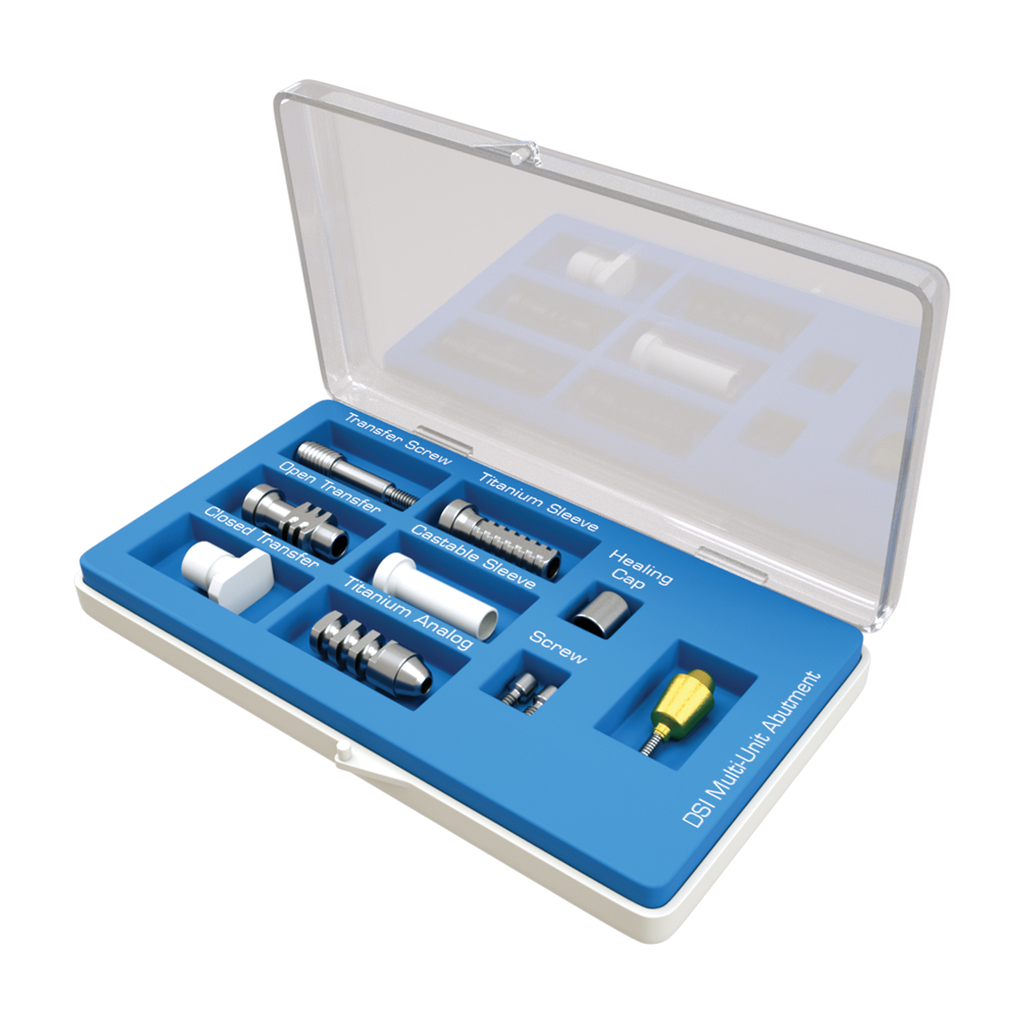

The most commonly used and versatile is the Full Set, which includes
One abutment of the chosen size:

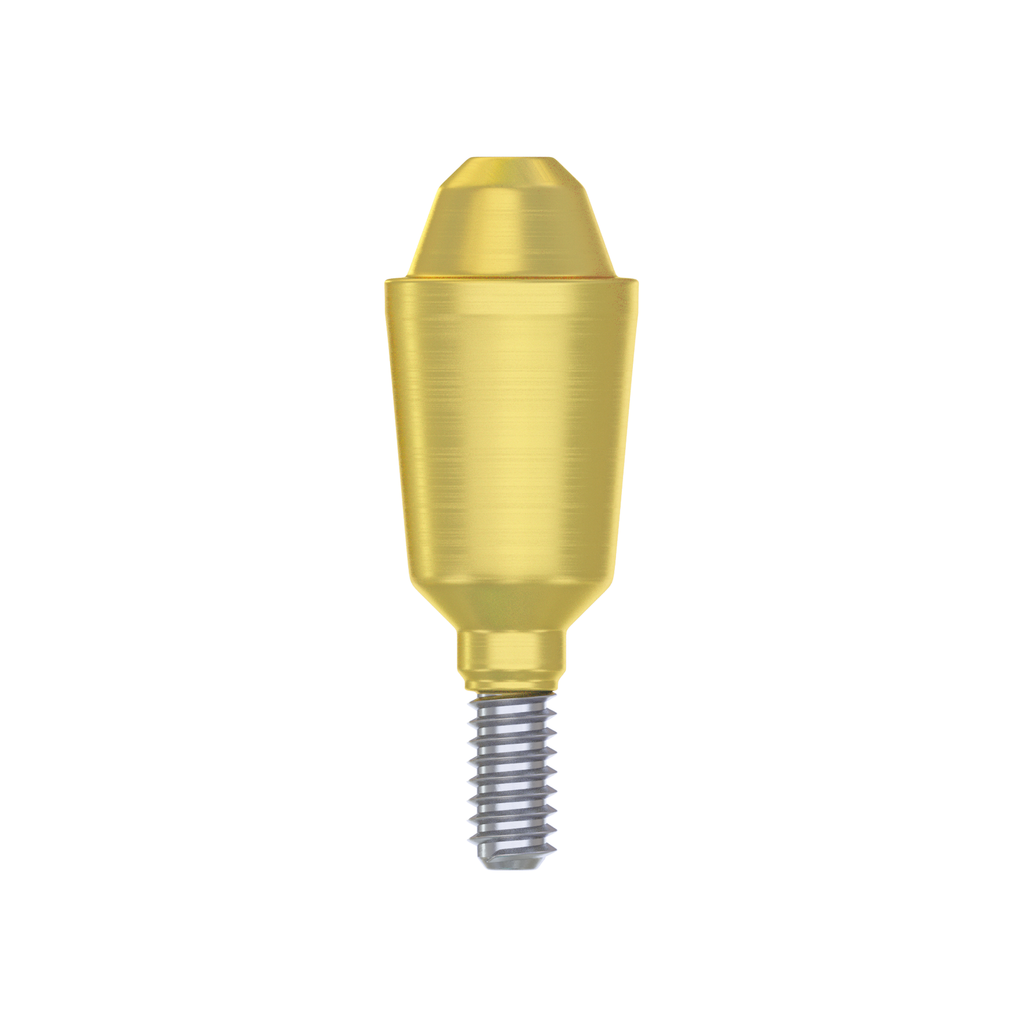

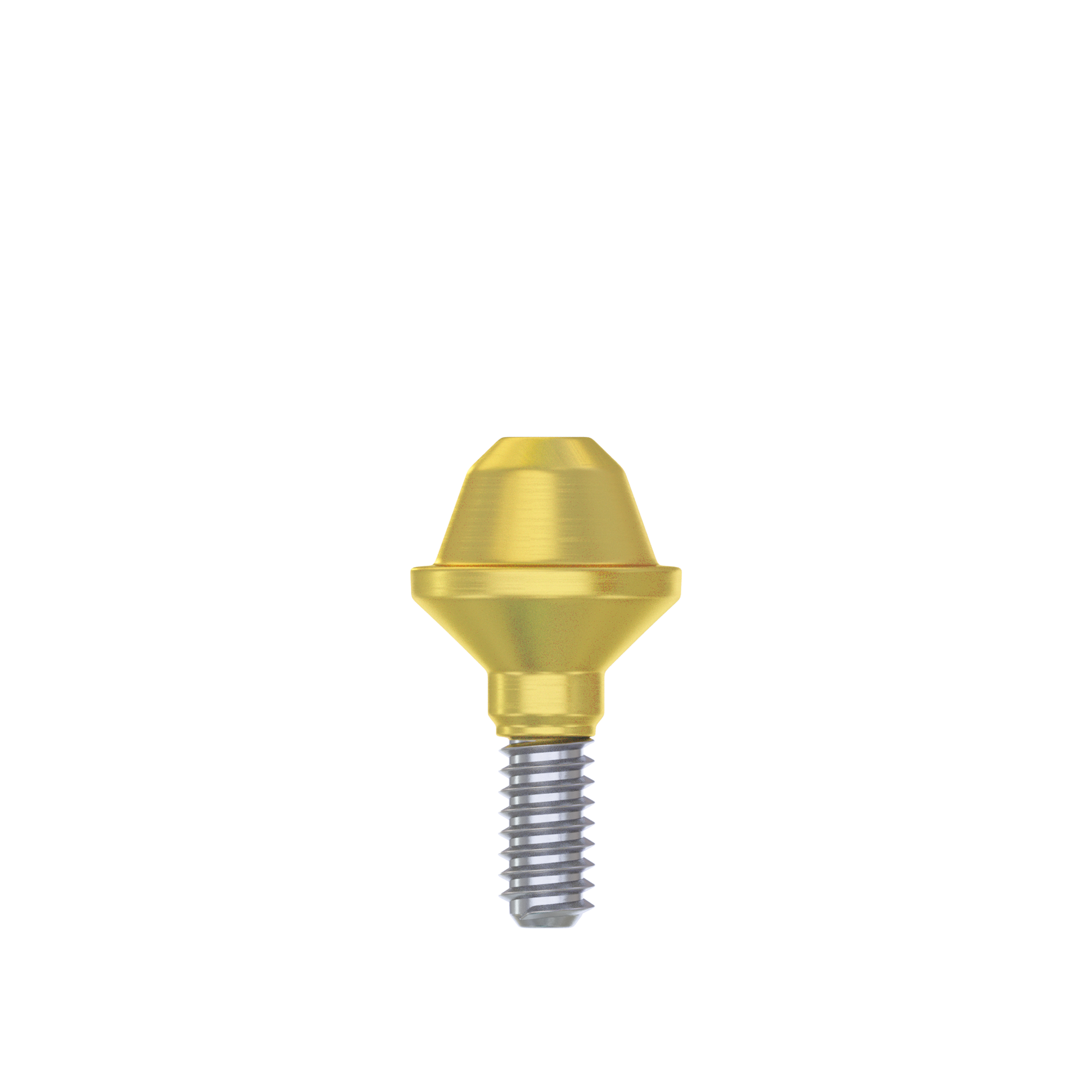

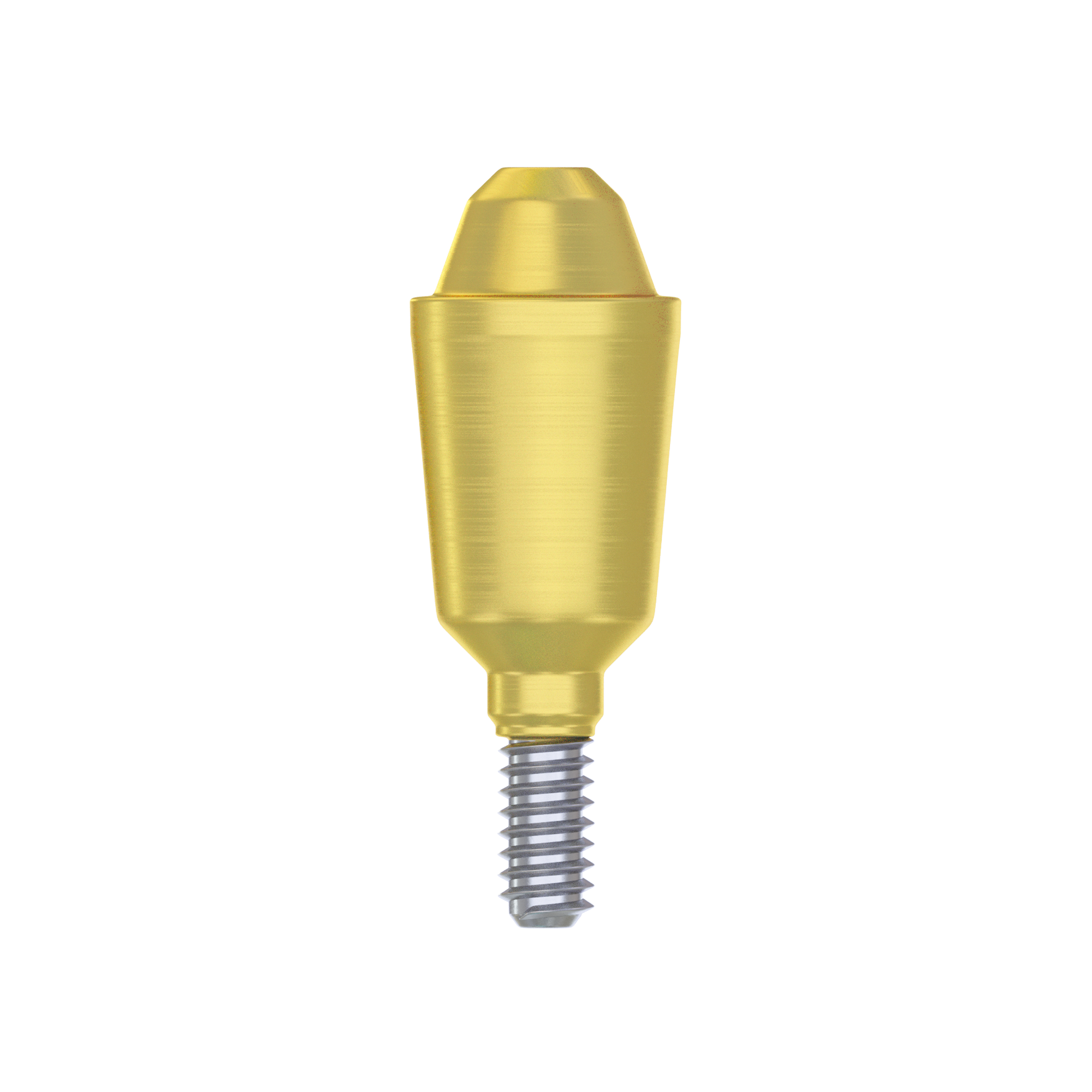

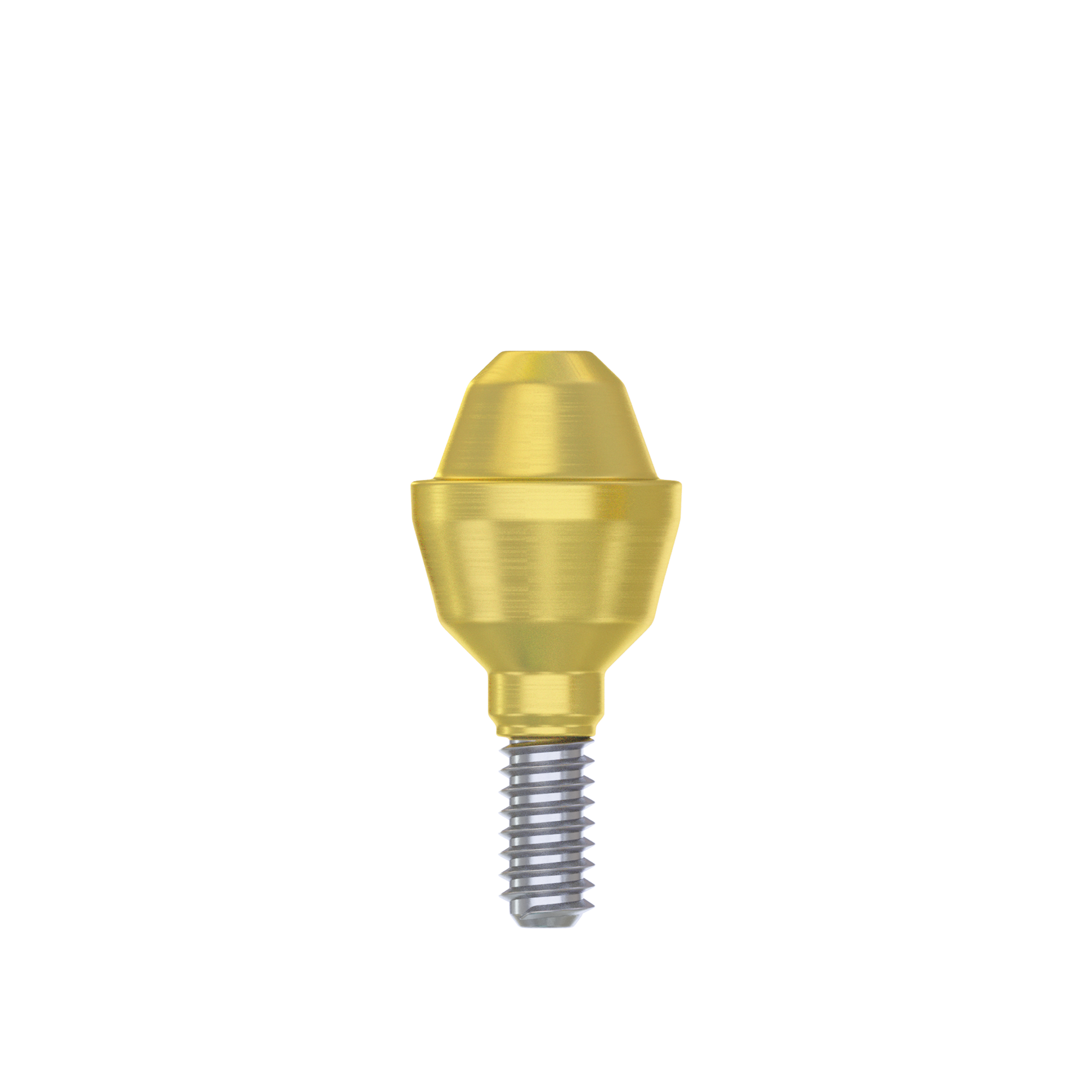

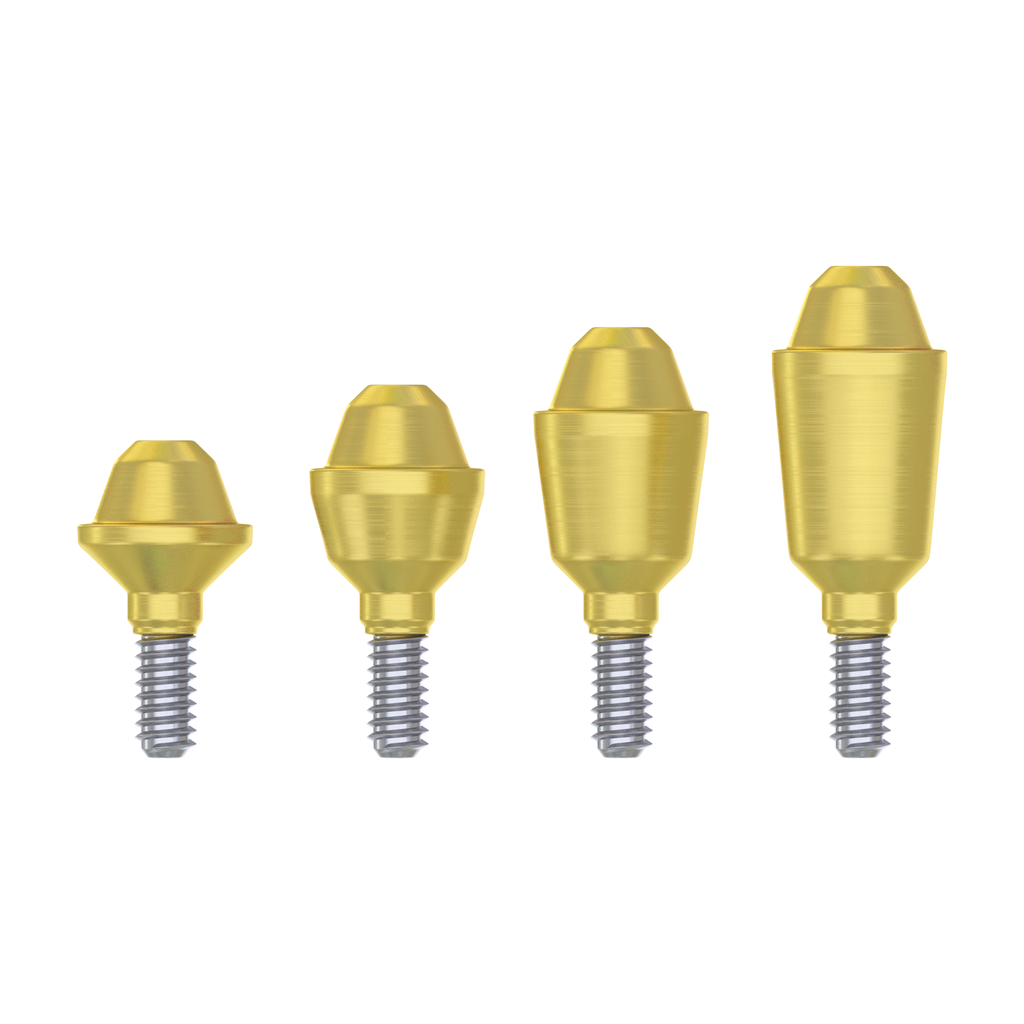

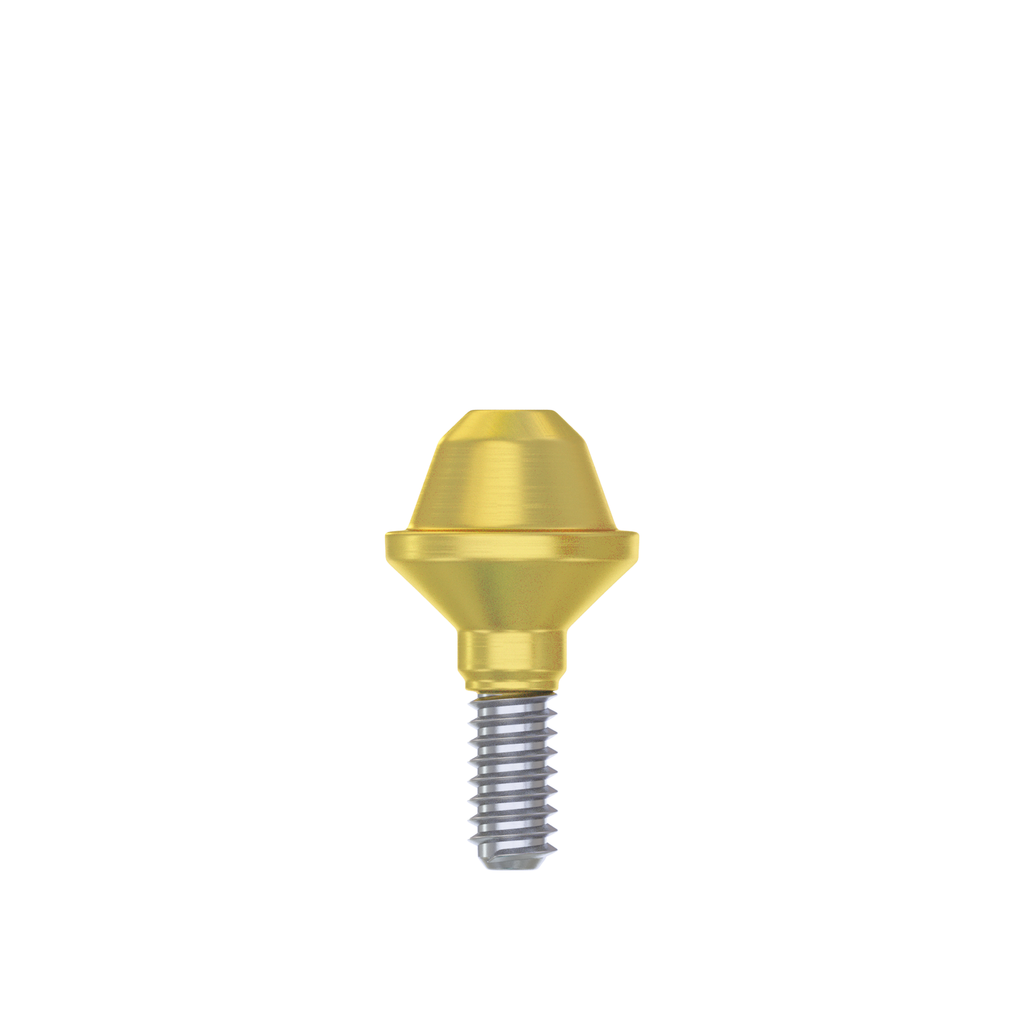

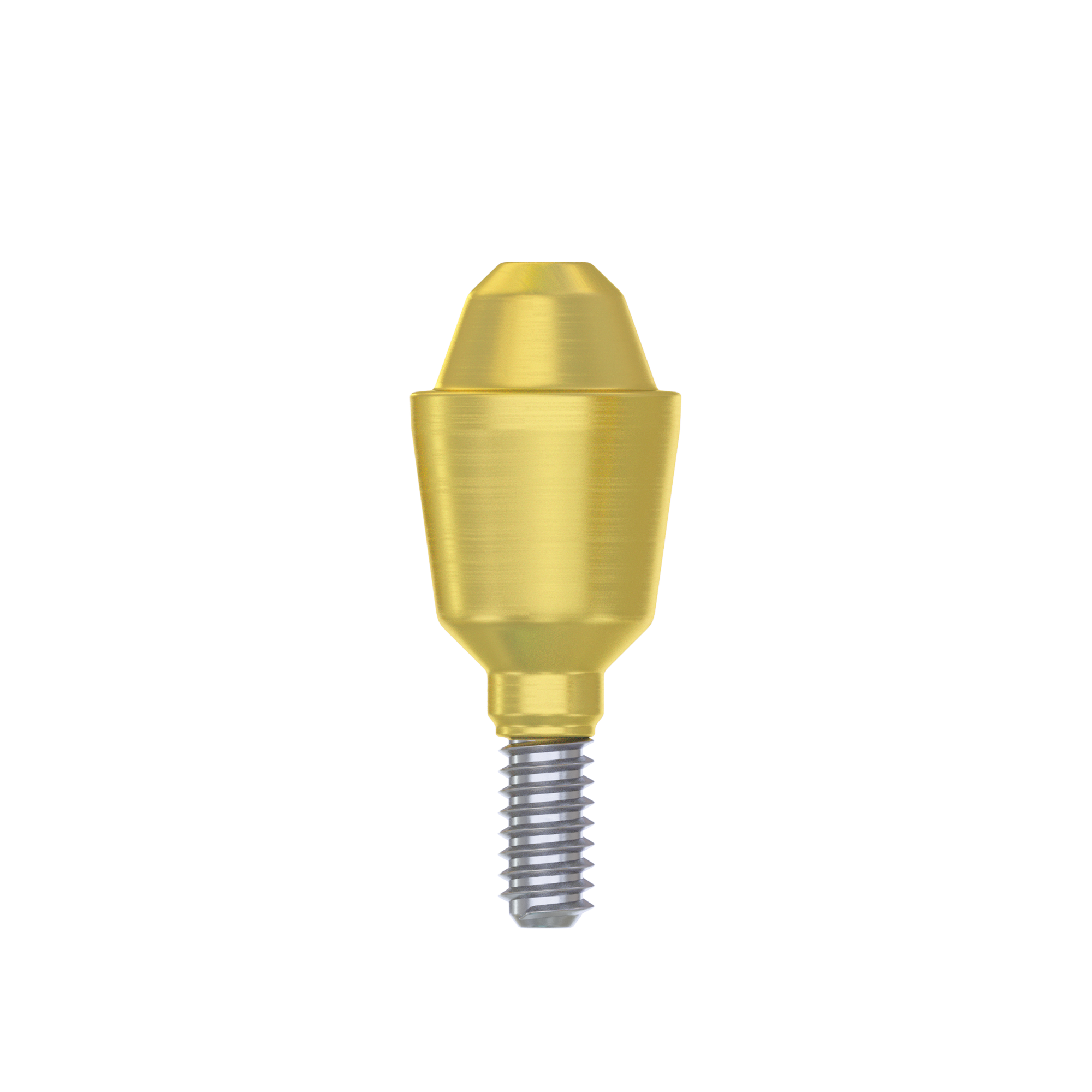

- MU-S-RP-10, MU-S-RP-20 , MU-S-RP-30 , MU-S-RP-40: Straight Multi Unit Abutment Ø5.0mm ,1.0-4.0mm x1
And the following parts:
-

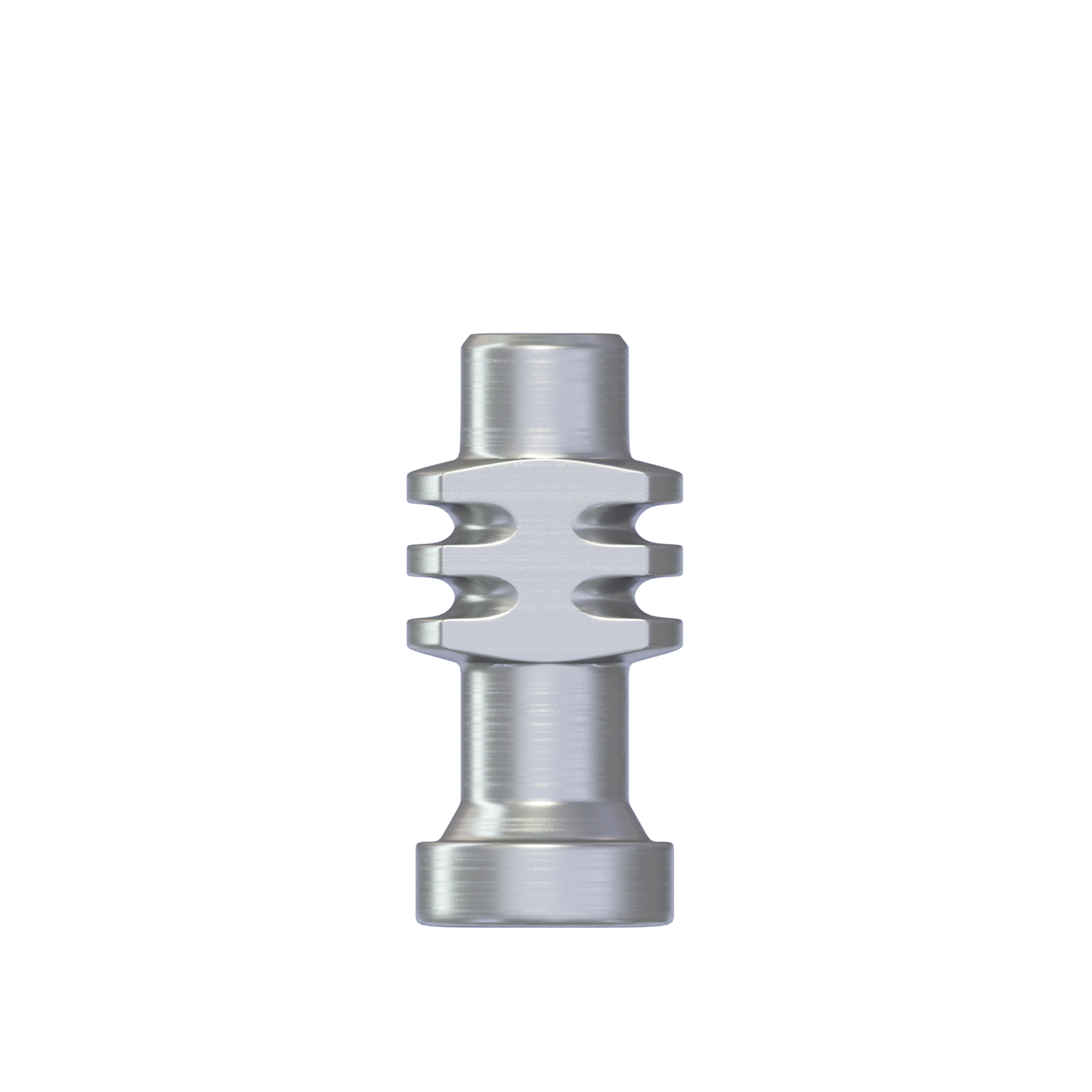

STFMU-K: Open Tray Transfer Ø 4.8mm , L=8.5mm, H=10.7mm x 1

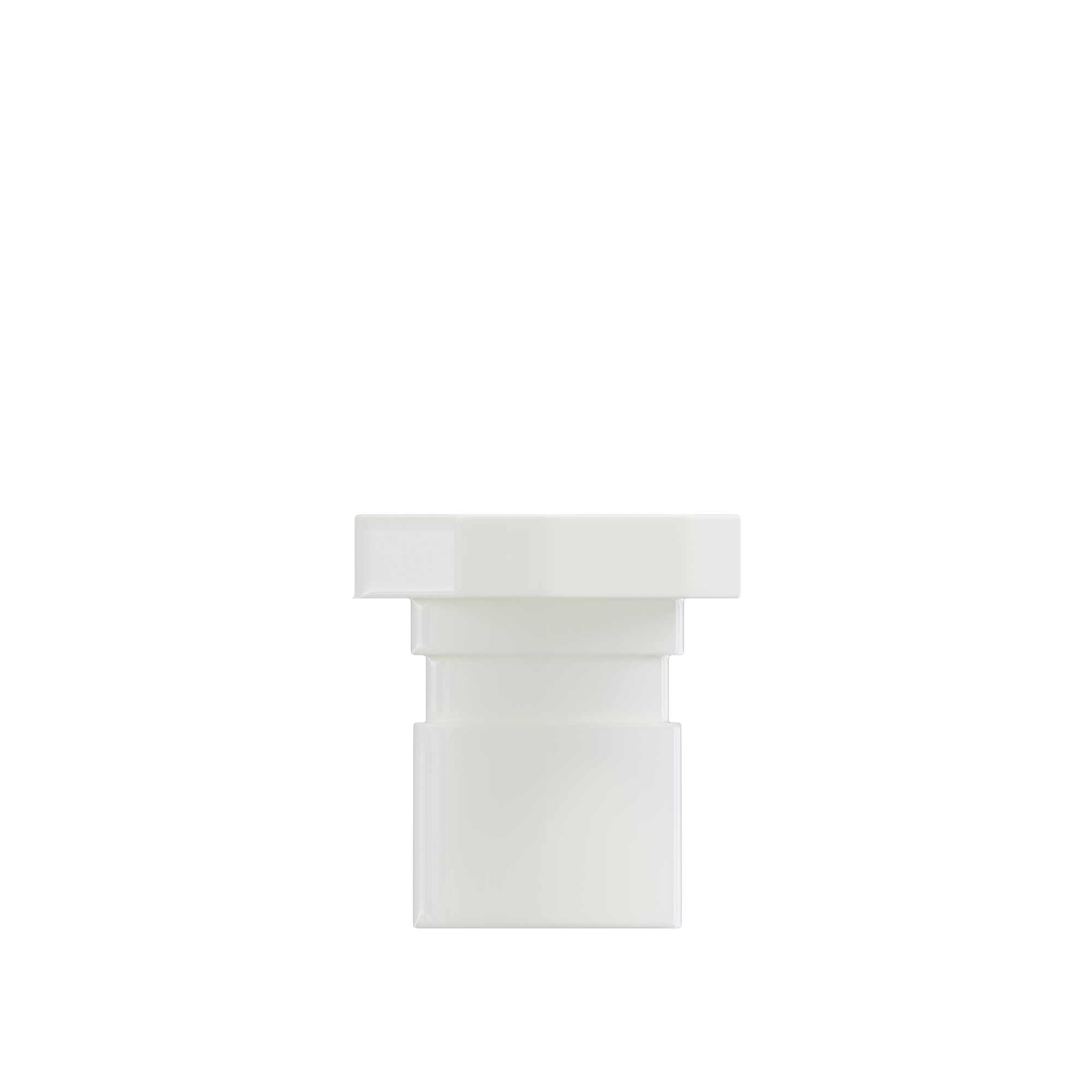

- STFMU-KC: Snap-On Closed Transfer Ø 4.75mm , L=5.0mm, H=7.2mm x 1

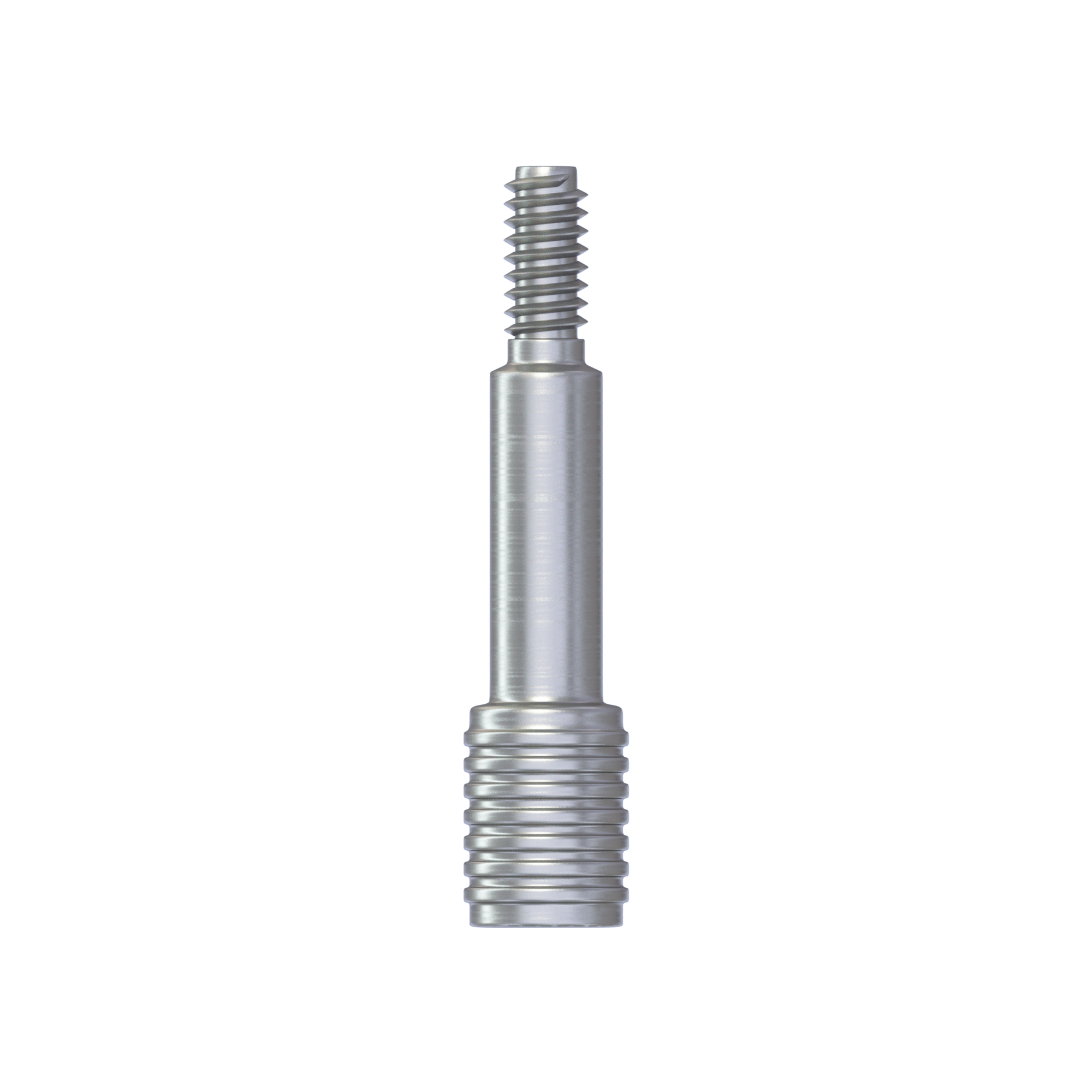

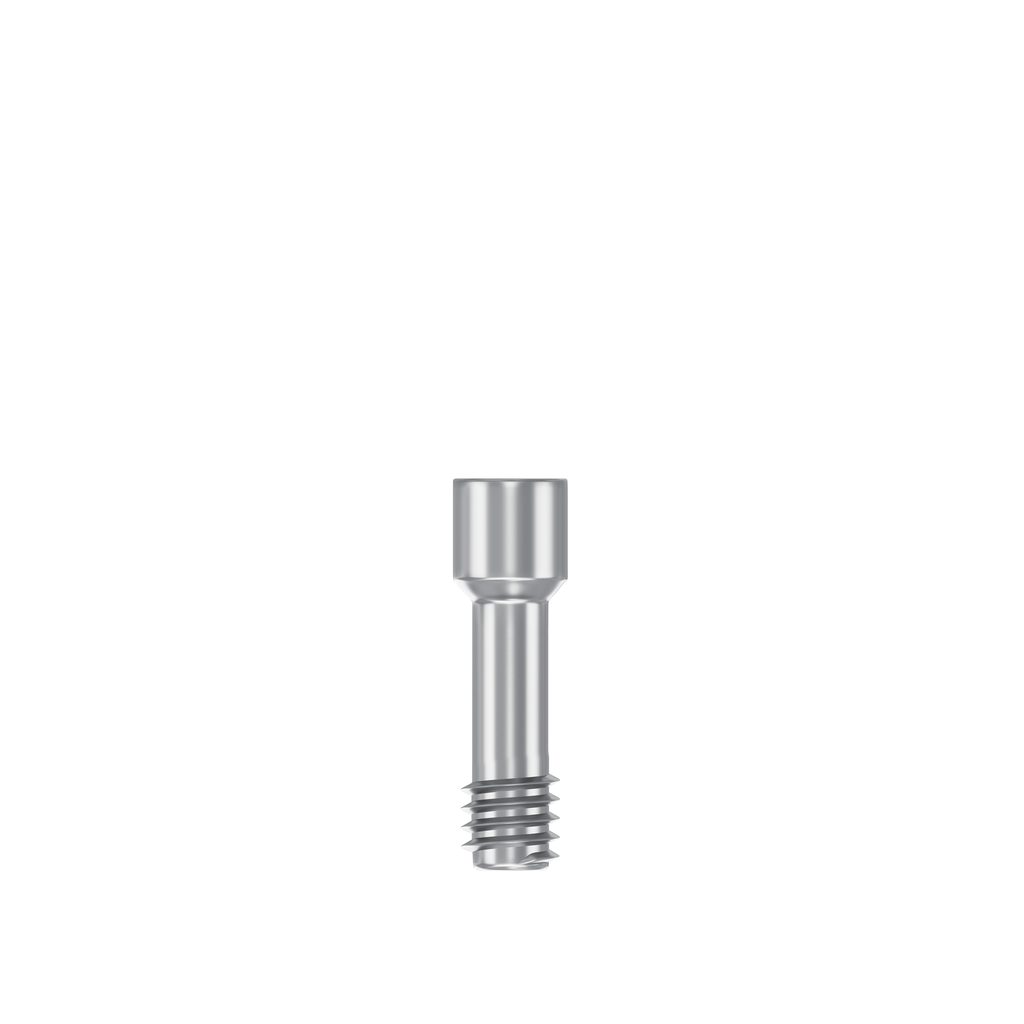

- SSFTMU-K: Premium Transfer Screw Ø 2.0mm , L=11.0mm, H=14.5mm x 1
-

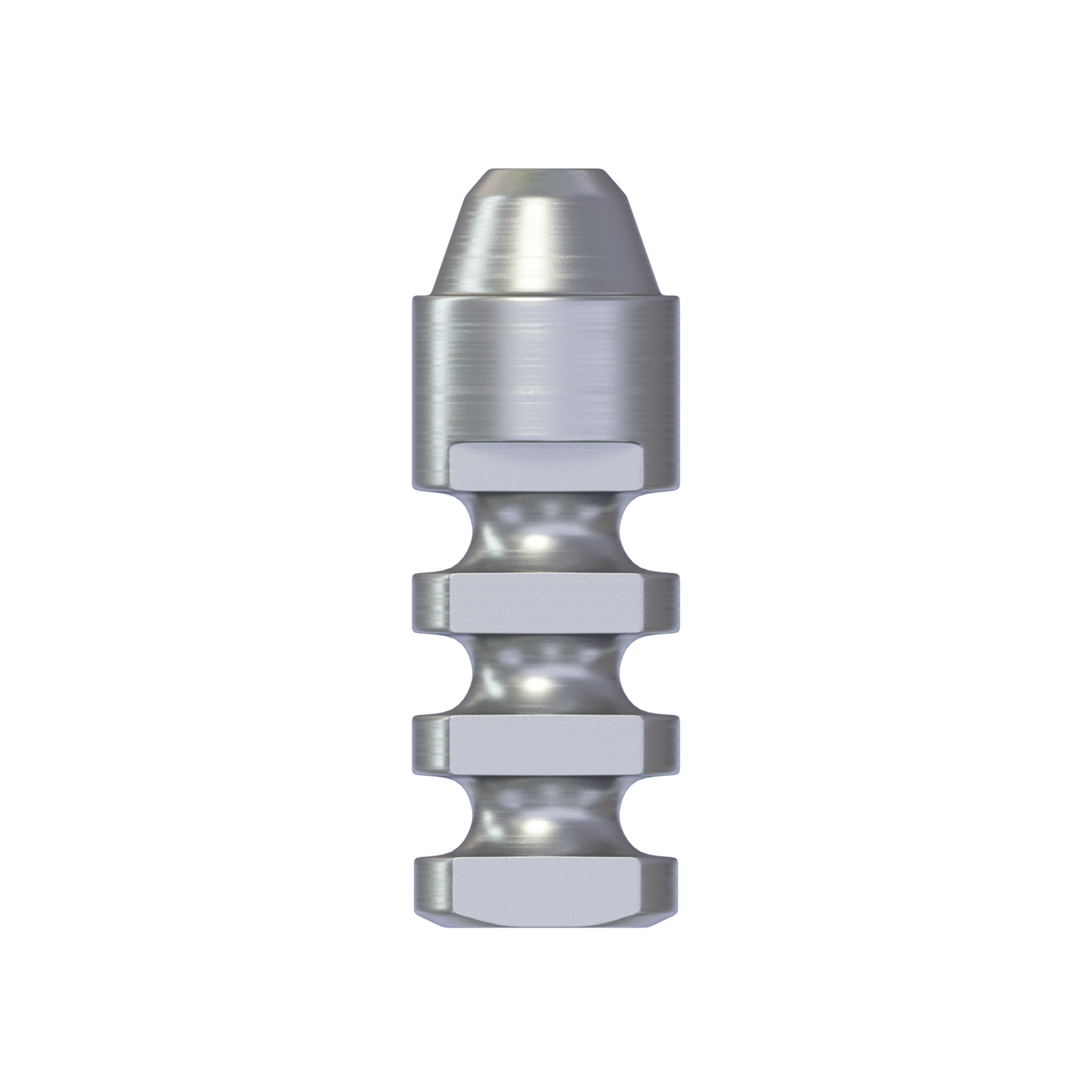

SAFMU-K: Titanium Analog Ø 4.8mm , L=7.0mm, H=13.5mm x 1

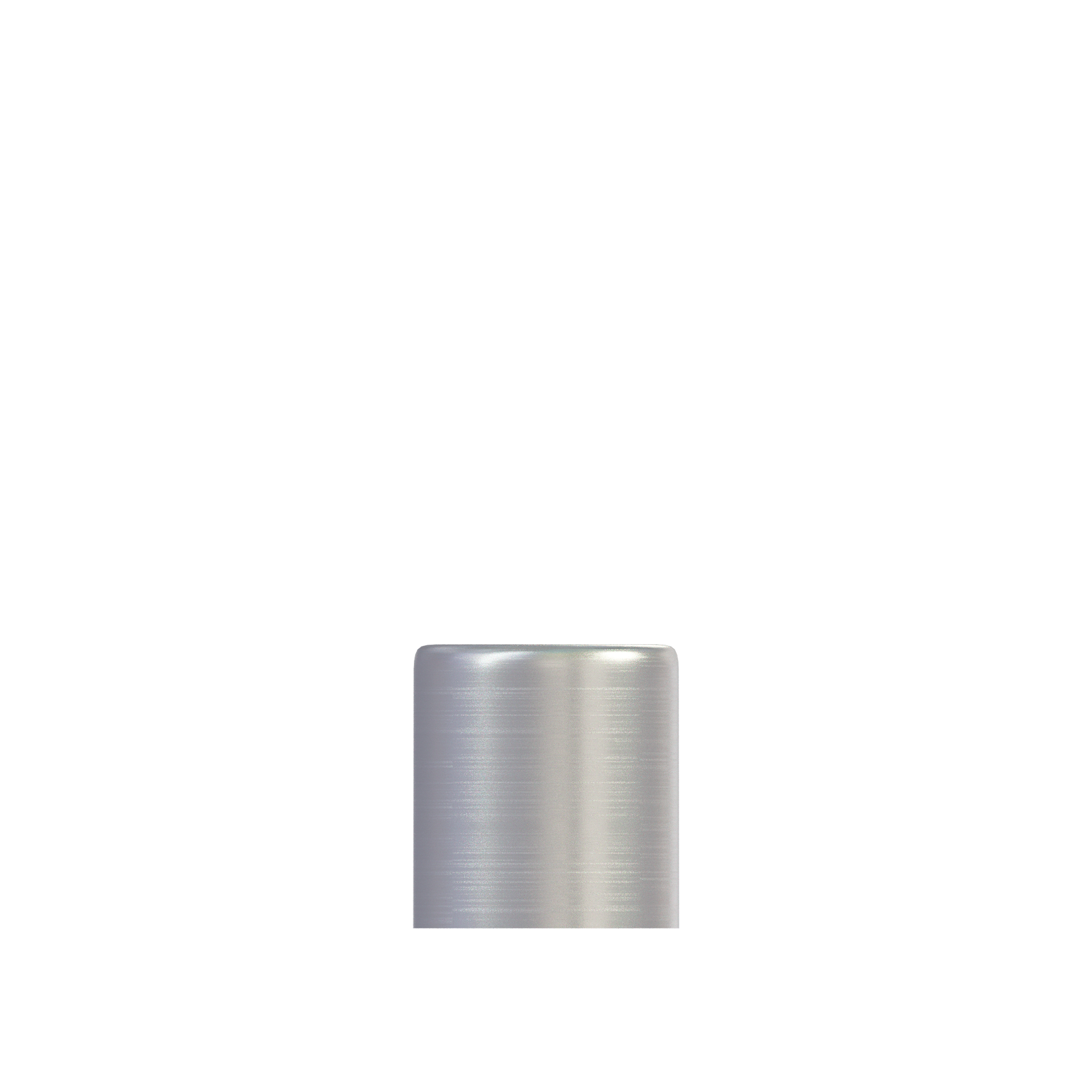

- SHCFMU-K: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

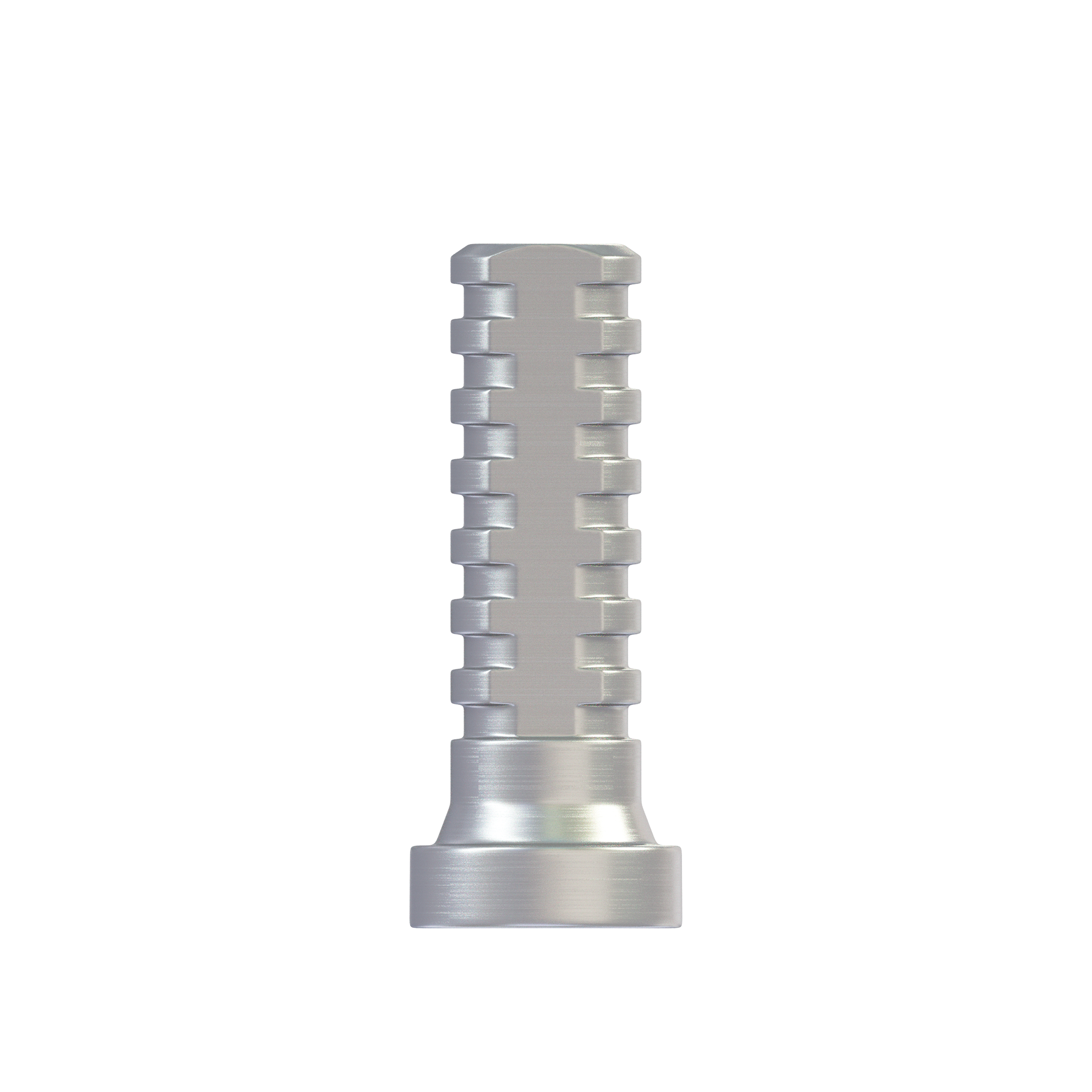

- SSTFMU-K: Titanium Sleeve Abutment Ø 4.8mm , L=10.0mm, H=12.0mm x 1

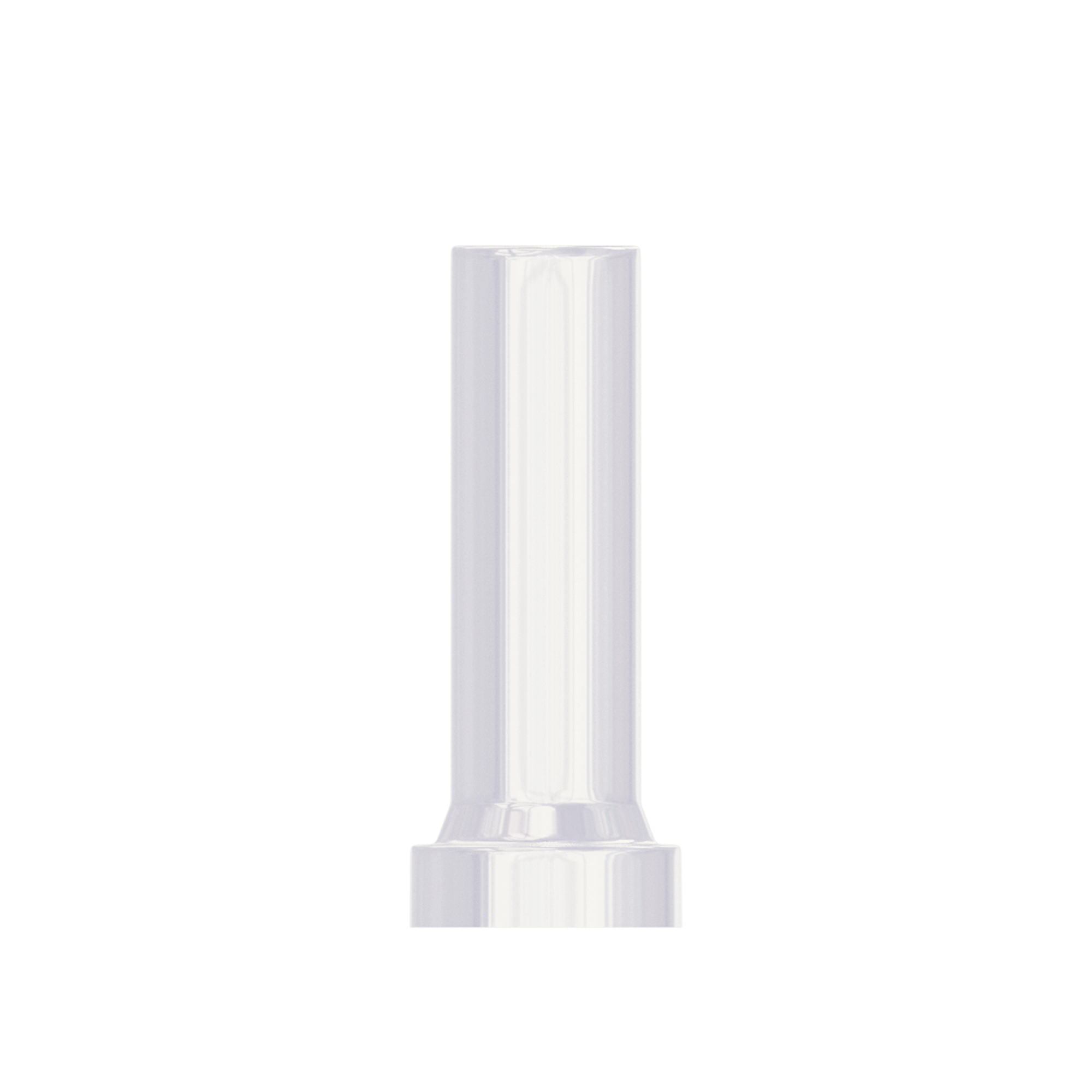

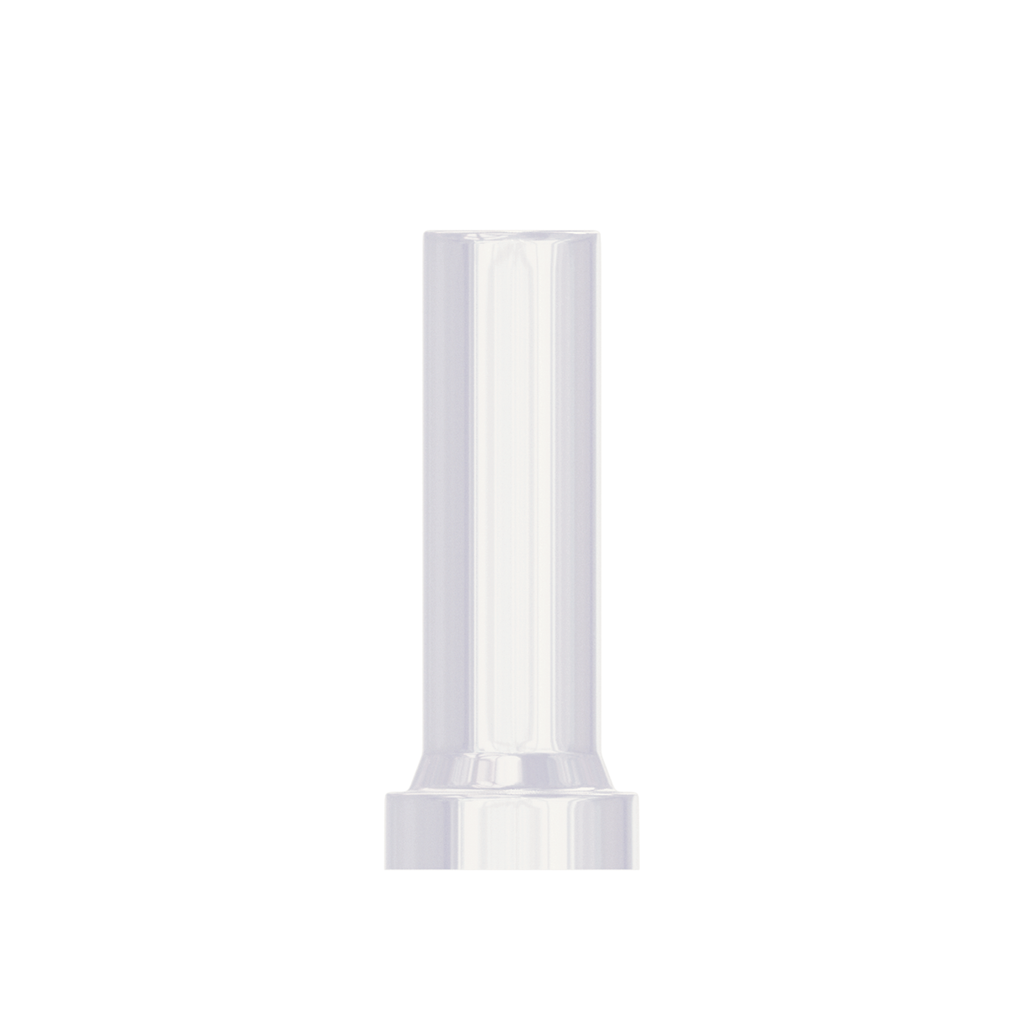

- SSPFMU-K: Castable Sleeve Abutment(for Lab) Ø 4.8mm , L=10.0mm, H=12.0mm x 1

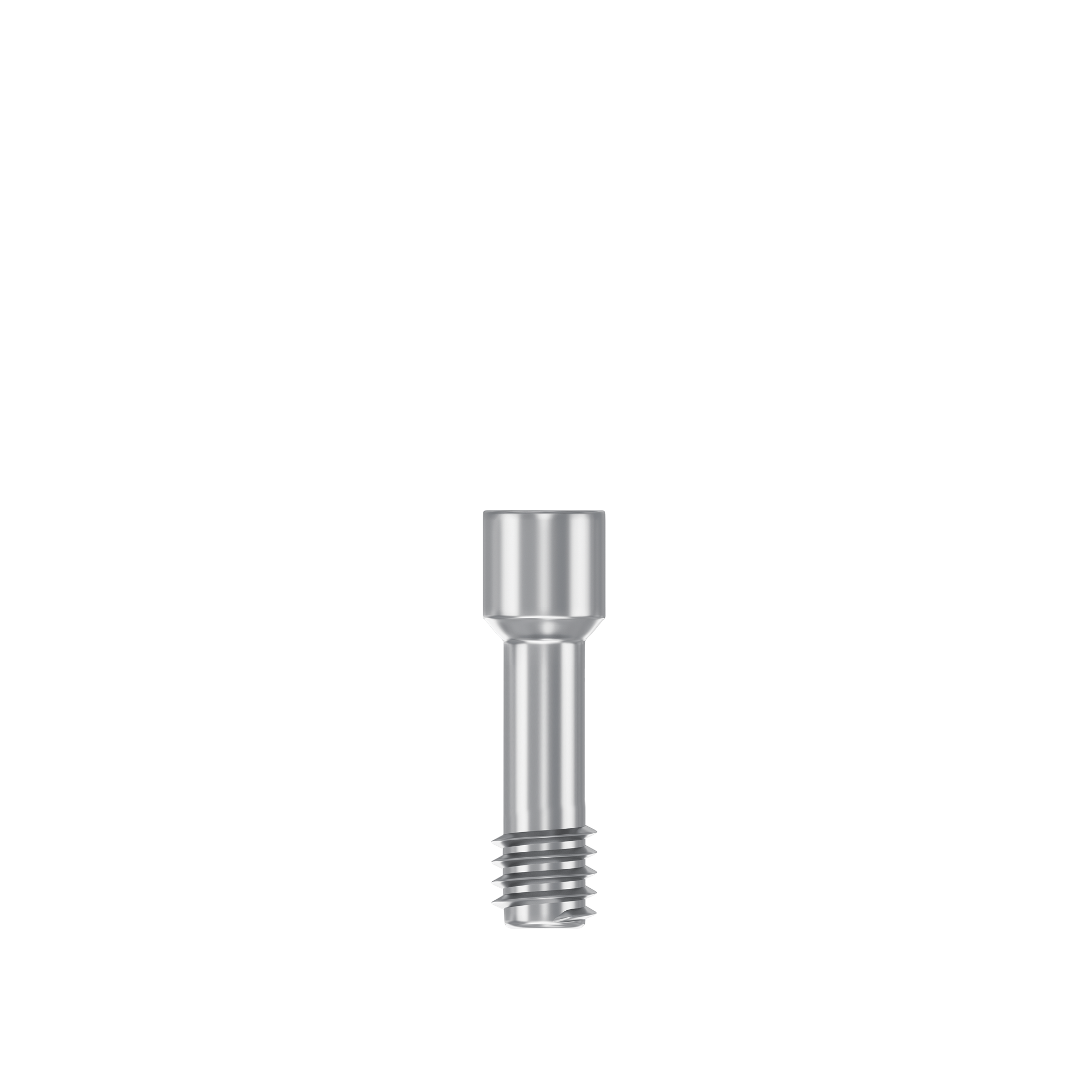

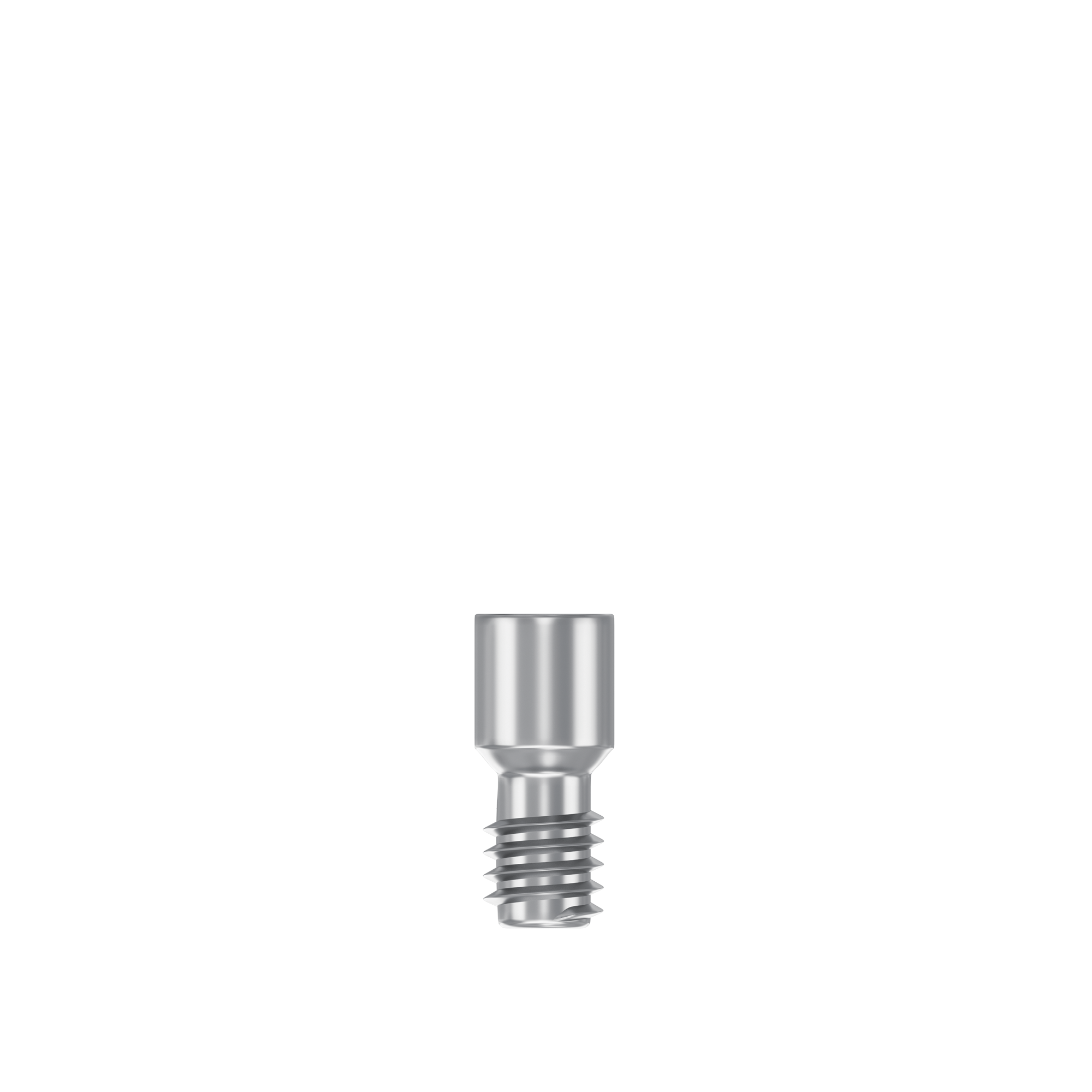

- SSFMU-K: Fixation Short Screws Ø 2.0mm , L=2.6mm, H=3.9mm x 2
Indications:
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
-
Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
-
Regular platform - Ø5.0mm / collar height 1.0-4.0mm
- Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,
Internal Hex Ø2.42mm
