Description

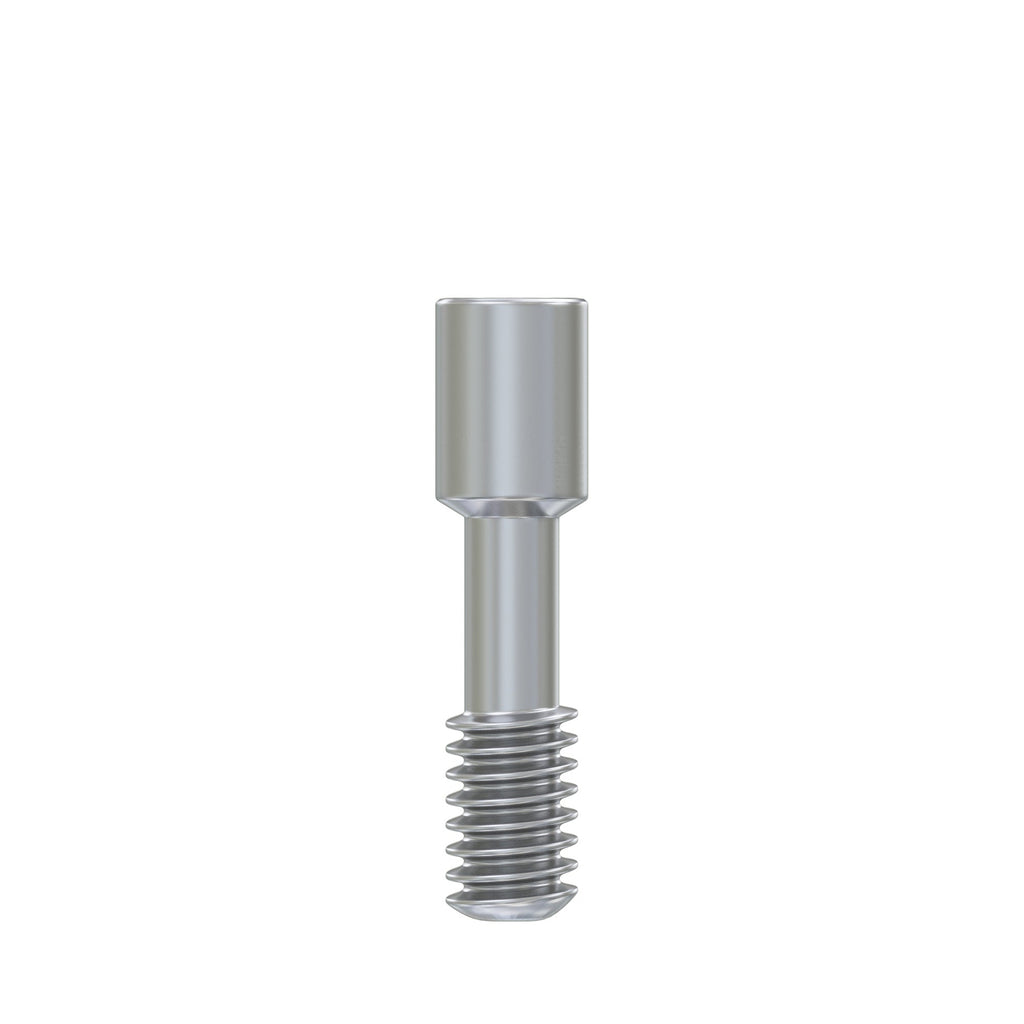

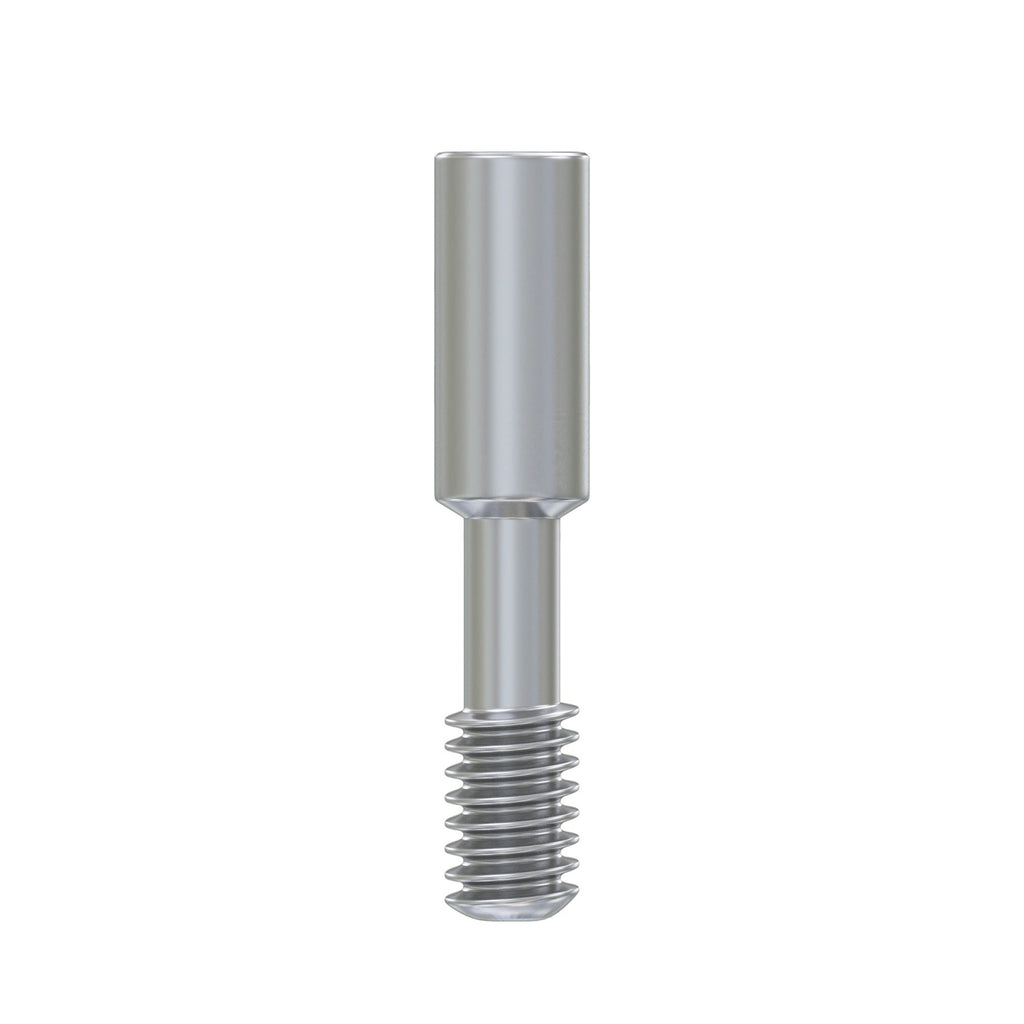

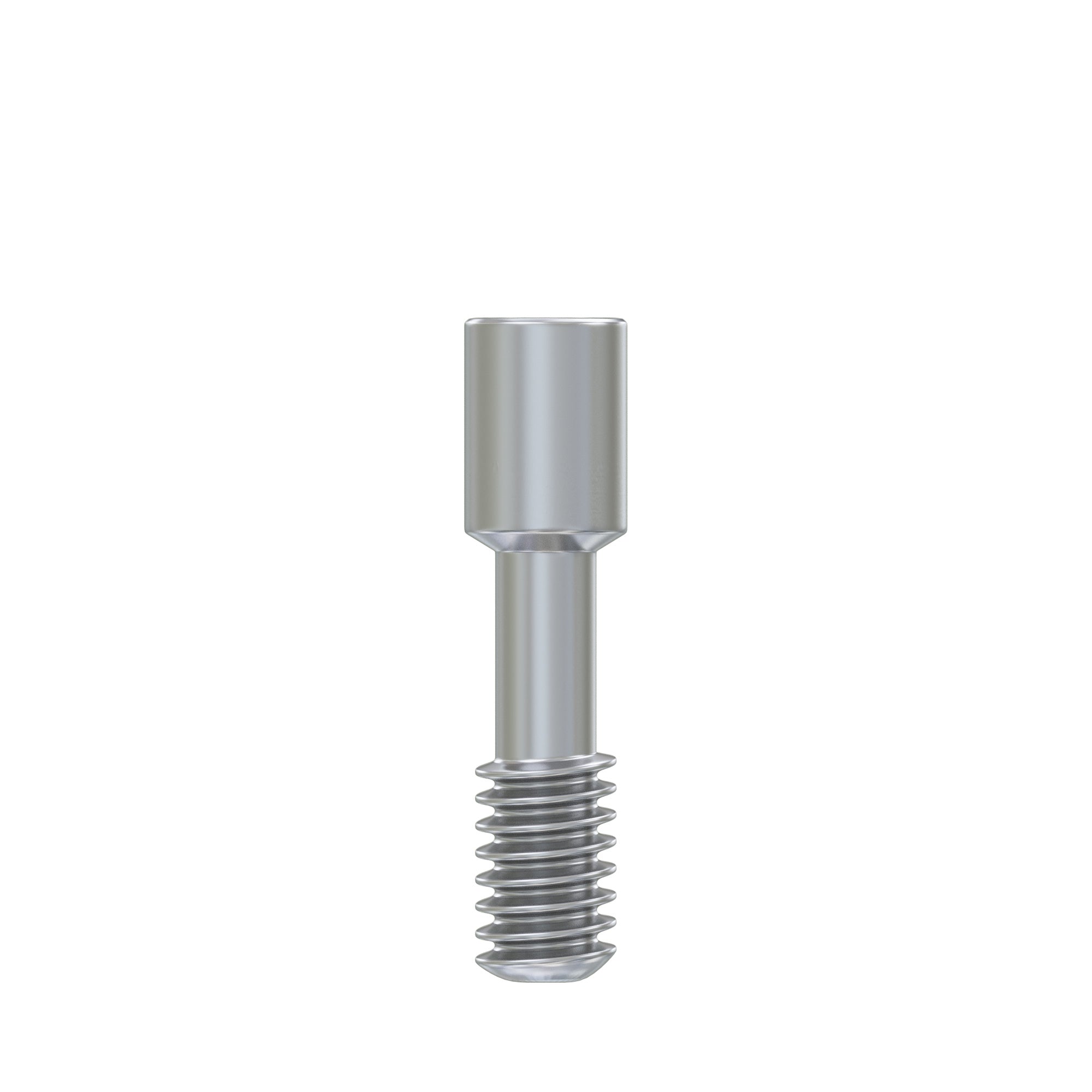

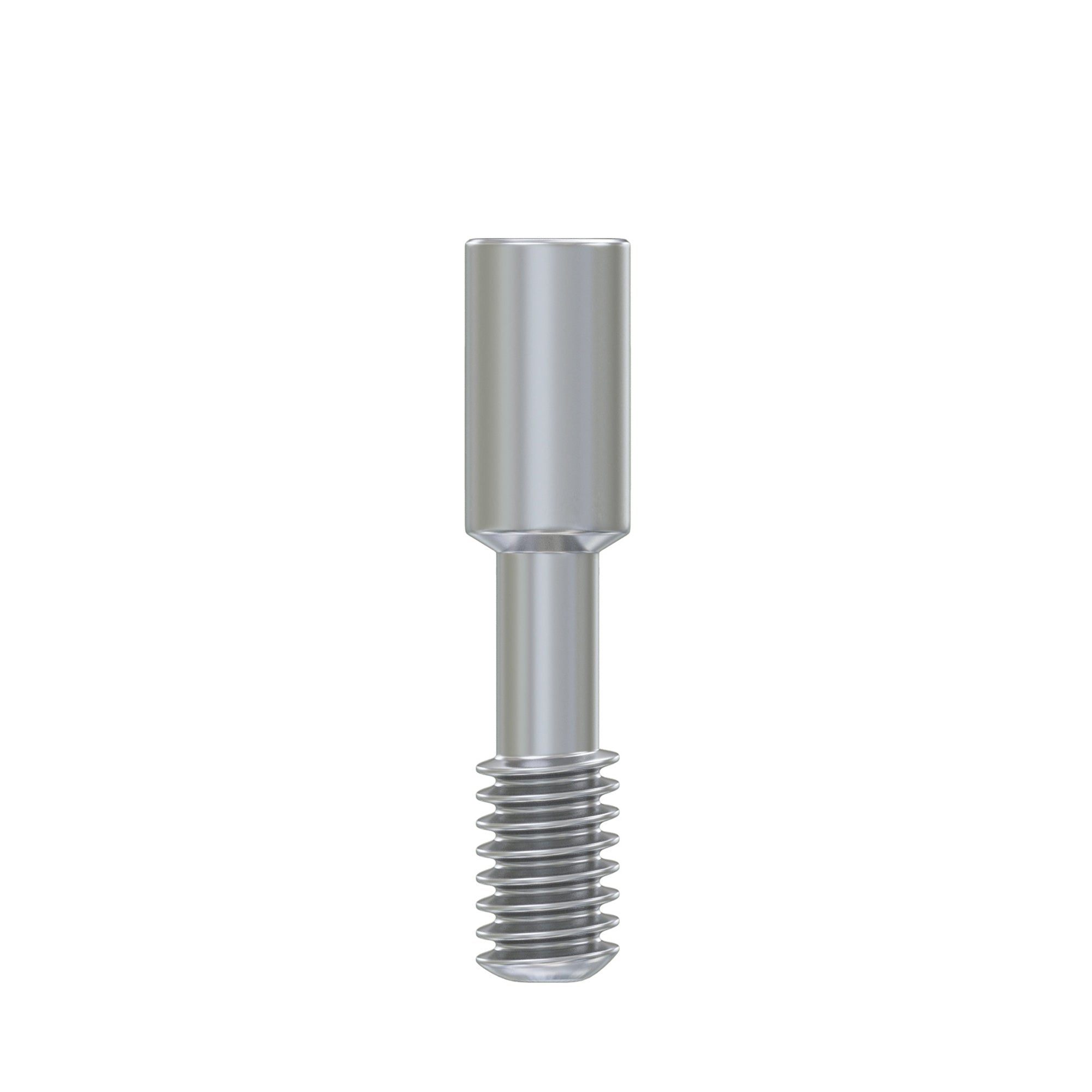

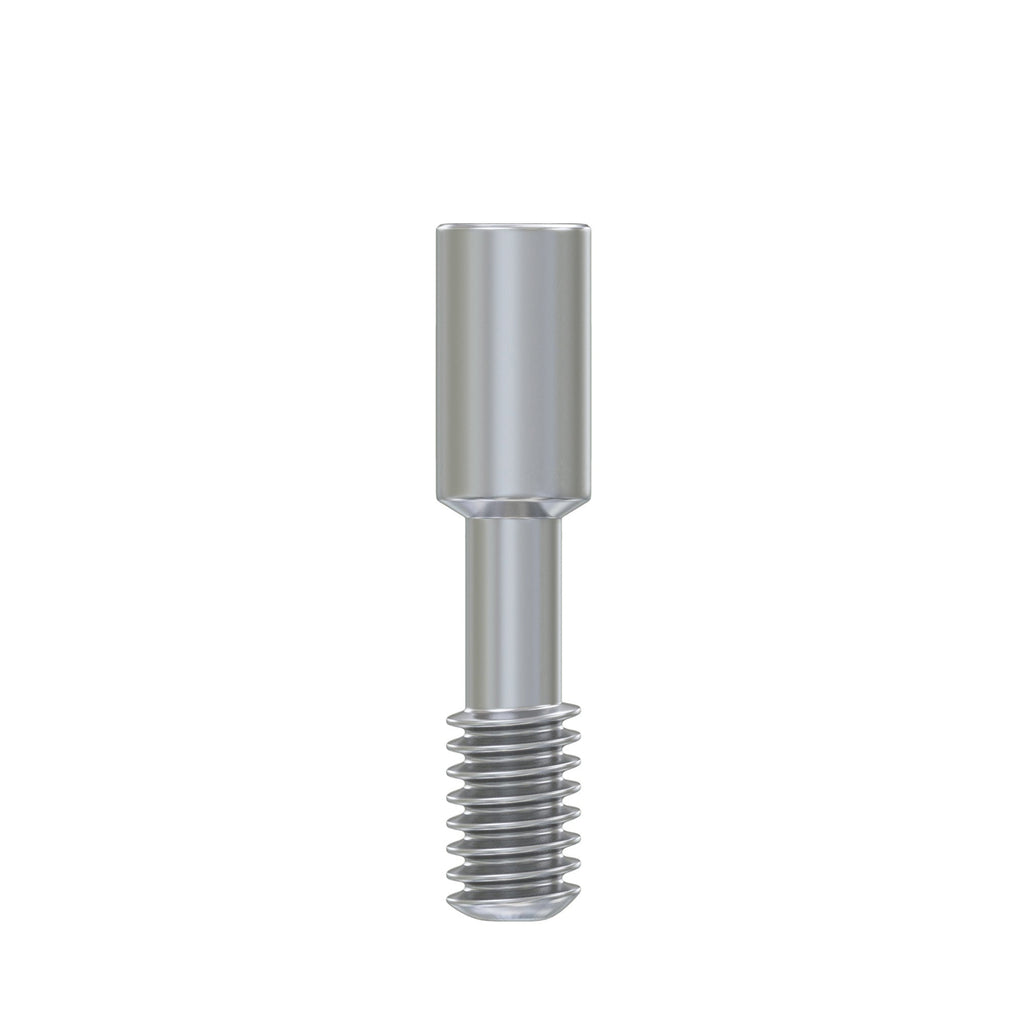

These screws are intended specifically for DSI angulated Ti-base CAD/CAM abutments only. Each screw was carefully designed to be compatible with a specific height of a DSI angulated ti-base abutment.
The screw is used to install and fixate the DSI angulated ti-base abutment on the implant. The screw is made of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI and compatible only with DSI angulated ti-base abutments. The implant's platform is internal-hex Ø2.42mm
Indications:
- Installation and fixation of angulated ti-base abutments on the implant
Features:
- Excellent biocompatibility
- Simple and fast insertion
- Accurate positioning
- Outstanding stability for abutments
Technical information:
- Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Compatible with DSI angulated ti-base abutments
- Platform: Internal hex Ø2.42mm
- Diameter: Ø2.1mm
- Length: 8.3 / 9.6 / 10.6mm
- Head length: 2.5 / 3.8 / 4.8mm
- Can be used with a regular Ø1.25mm hexagon driver

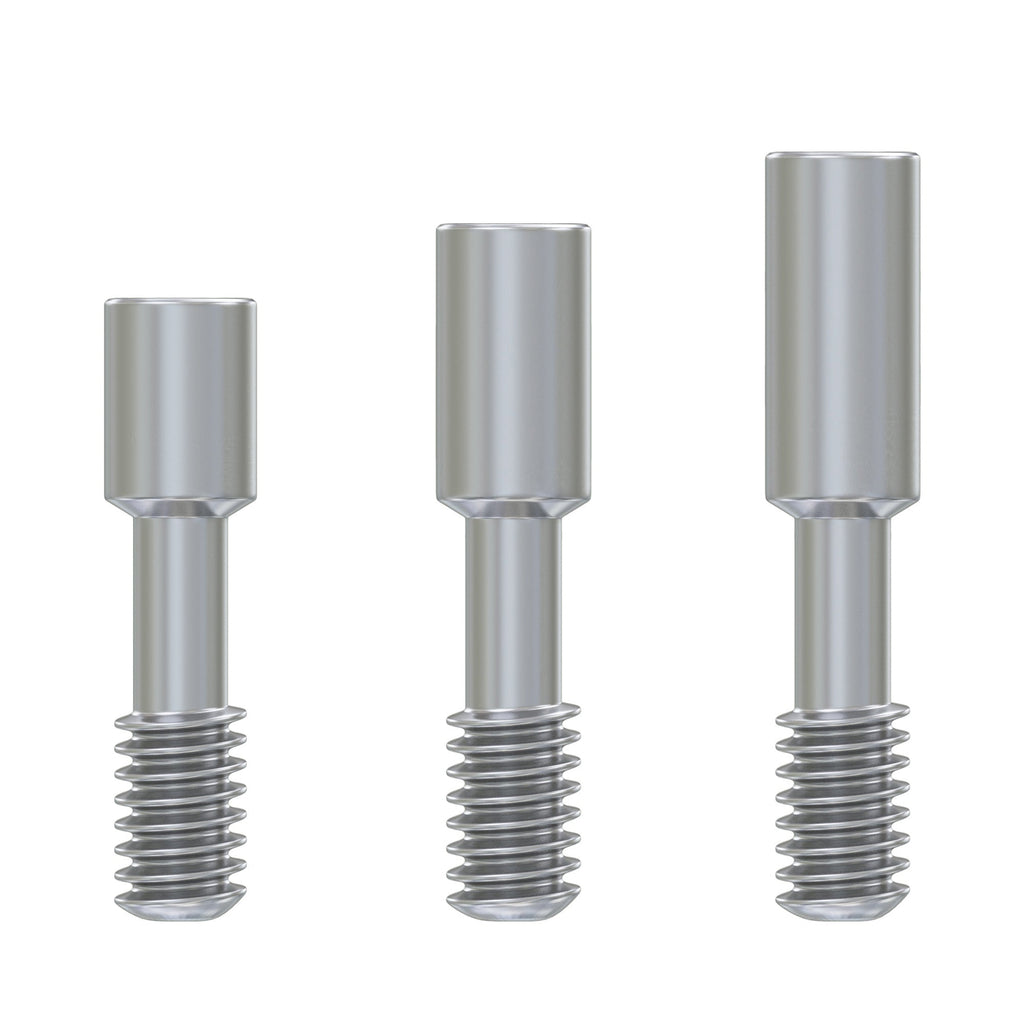

Screw types and compatibility:
SISCA1: Compatible only with DSI angulated ti-base abutments with collar height of 0.5mm / 1.0mm / 2.0mm

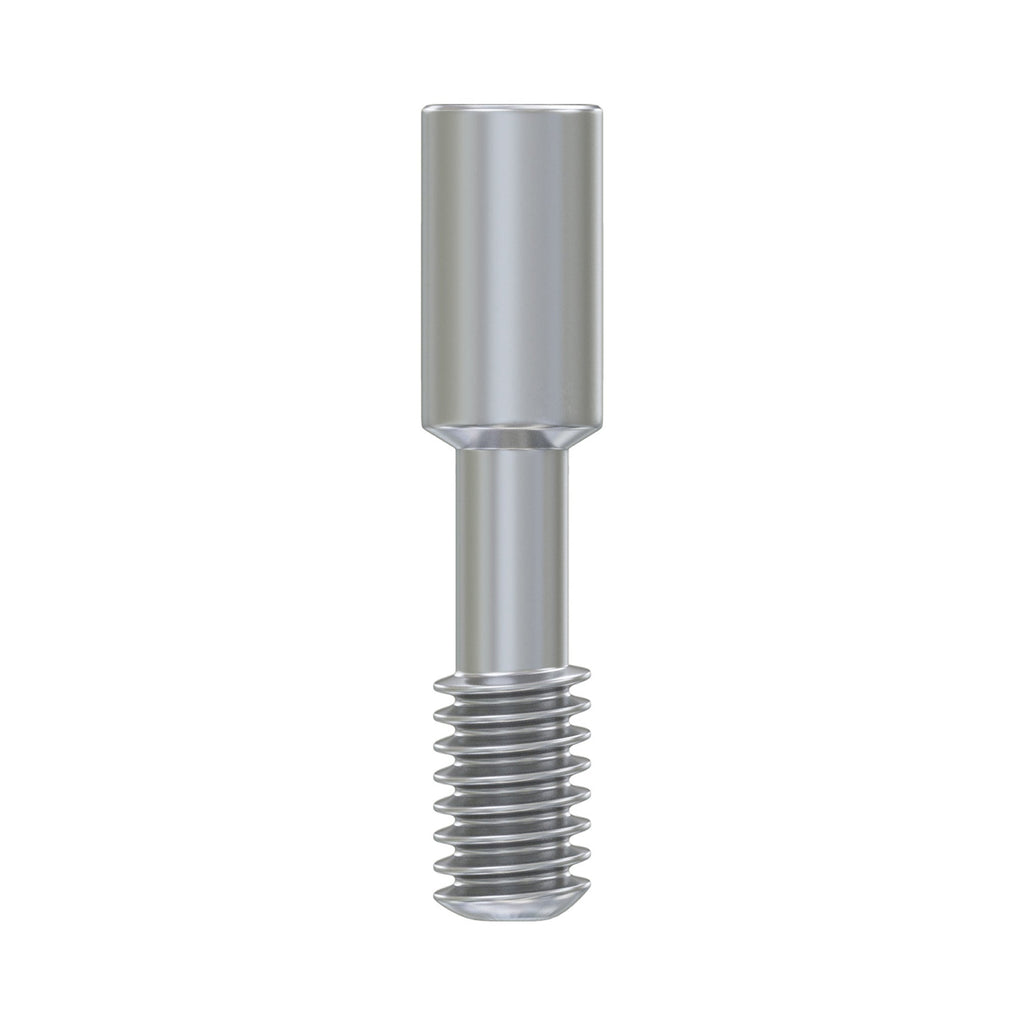

SISCA2: Compatible only with DSI angulated ti-base abutments with collar height of 3.0mm
SISCA3: Compatible only with DSI angulated ti-base abutments with collar height of 4.0mm
Package includes 1 fixation screw
Internal Hex Ø2.42mm
Units in a box:1
