DSI Angulated Loc-in Abutment 5.0mm Full Set - Conical Connection NP Ø3.5mm

DSI Angulated Loc-In flat overdenture attachment is commonly used in dental practice for a wide range of cases involving partial and fully edentulous patients. It is primarily indicated for overdentures and is often installed as an all-on-4 or all-on-6 solution.

DSI Loc-in attachments are used for creating snap-on removable dentures with implants for stability. Implant-retained dentures are a type of overdenture that you can take in and out for cleaning and maintenance. It attaches to dental implants, while loc-ins are stabilising and connect them together in the mouth much better than paste or adhesives.

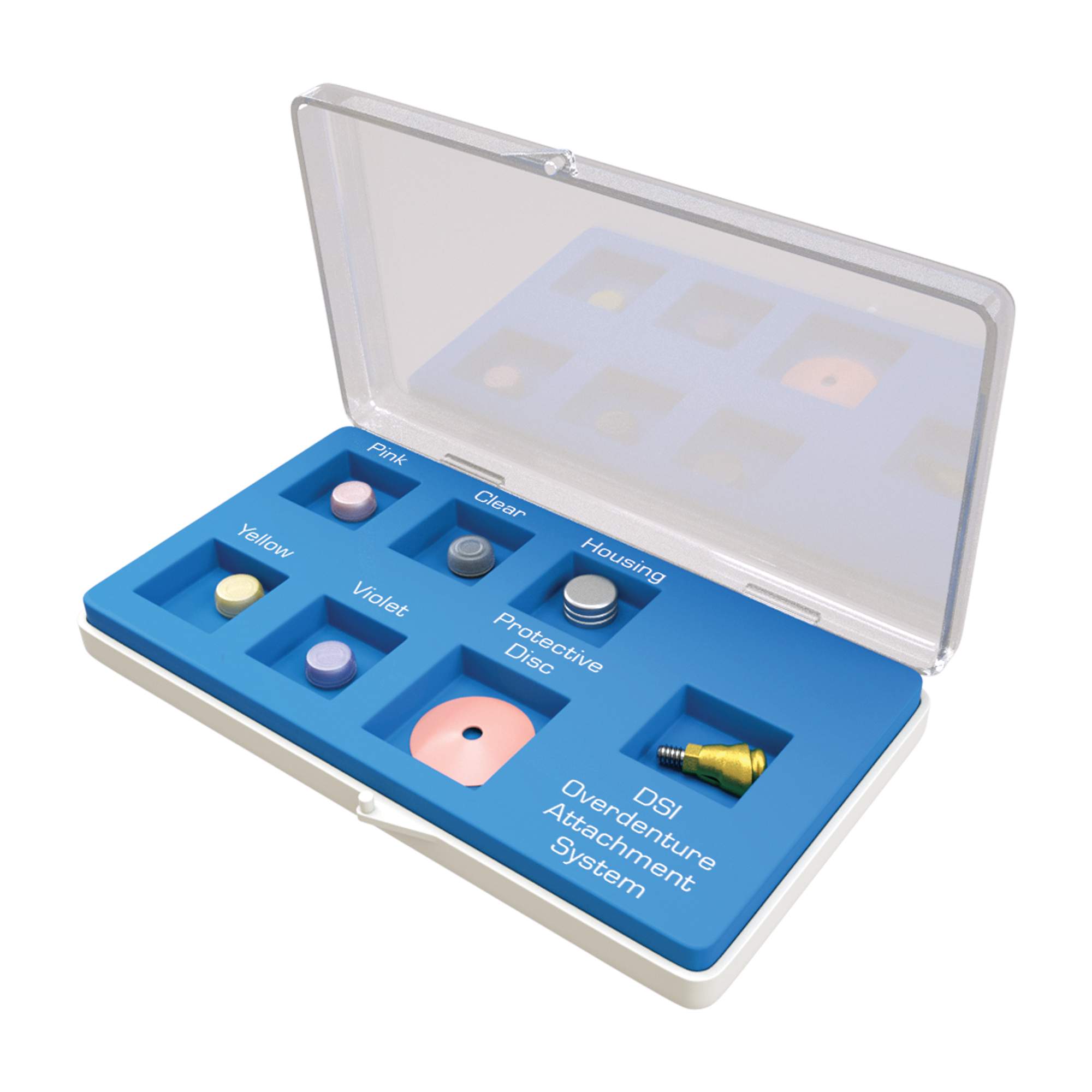

The most commonly used and versatile is the FULL SET, which includes:

1. Angulated 18/30 Degrees LOC-IN Abutment 5.0mm 1.0-3.0mm  x1
2. Silver Metal Housing (height 2.0mm) -Ø 5.6mm x 1
3. Pink Soft Cap 1.2kg/2.6lbs retention x 1
4. Yellow Extra-Soft Cap 0.6kg/1.3lbs retention x 1
5. Clear Standard Cap 1.8kg/4.0lbs retention x 1
6. Violet Strong Cap 2.5kg/5.5lbs retention x 1
7. Pink Protective Disc Ø 14.0mm/Internal Ø2.9mm

The Loc-In attachment is known for its large surface area and stable structure, making it more stable and durable than other types of overdenture attachments. It delivers exceptional stability and ensures a secure fit between the implant, minimizing micro-movements and providing a tight marginal seal. This secure fit enhances the longevity and functionality of the overdenture.

Additionally, the Loc-In attachment offers convenience for both patients and doctors. It can be easily maintained by the patient at home, reducing the need for frequent visits to the dental clinic. This convenience factor makes it a popular choice for long-term usage.

Indications:

• Partial and full dentures
• All-on-4, All-on-6
• Denture conversion

• For non-parallel implant alignment cases

Features:

• Available in different collar heights.
• wide range or different resilience/retention level soft silicone inserts are available for maximum patient comfort and natural chewing motion
• Full solid titanium body.
• Hygiene-friendly construction.
• Excellent biocompatibility.
• Perfect choice for overdentures
• Designed for easy placement.
• Long term survival of silicone inserts thank to a steady placement.
• Guarantees a secure fit between with the implant.
• Stable and durable for a long time

Technical information:

• Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Narrow Platform NP - Ø5.0mm / Collar Height 1.0-3.0mm
• Fully compatible with DSI Conical NP, NobelActive® NP platform Ø3.5mm
• 18° Degrees
• 30° Degrees
• Titanium fixation screw included with every abutment
