DSI Angulated DSI-LOCK low-profile hybrid attachment Full Set 4.2mm - Internal Hex Ø2.42mm

DSI-LOCK is a revolutionary dental solution developed by DSI.

It is a low-profile hybrid attachment that combines the versatility and pivoting capacity of ball attachments with the strength and stability of lock-type cap attachments. The DSI-LOCK offers high aesthetics, ease of use, and exceptional functionality for overdenture restorations.

With years of intensive research and development, DSI has created the DSI-LOCK based on feedback and recommendations from leading dentists in the industry. This innovative solution provides dental professionals with a superior option for overdenture restorations, offering improved patient comfort and satisfaction.

Once a dentist tries the DSI-LOCK, they will likely find it difficult to return to old-fashioned overdenture restoration options. The DSI-LOCK is designed to enhance the overall treatment experience for both the dentist and the patient.

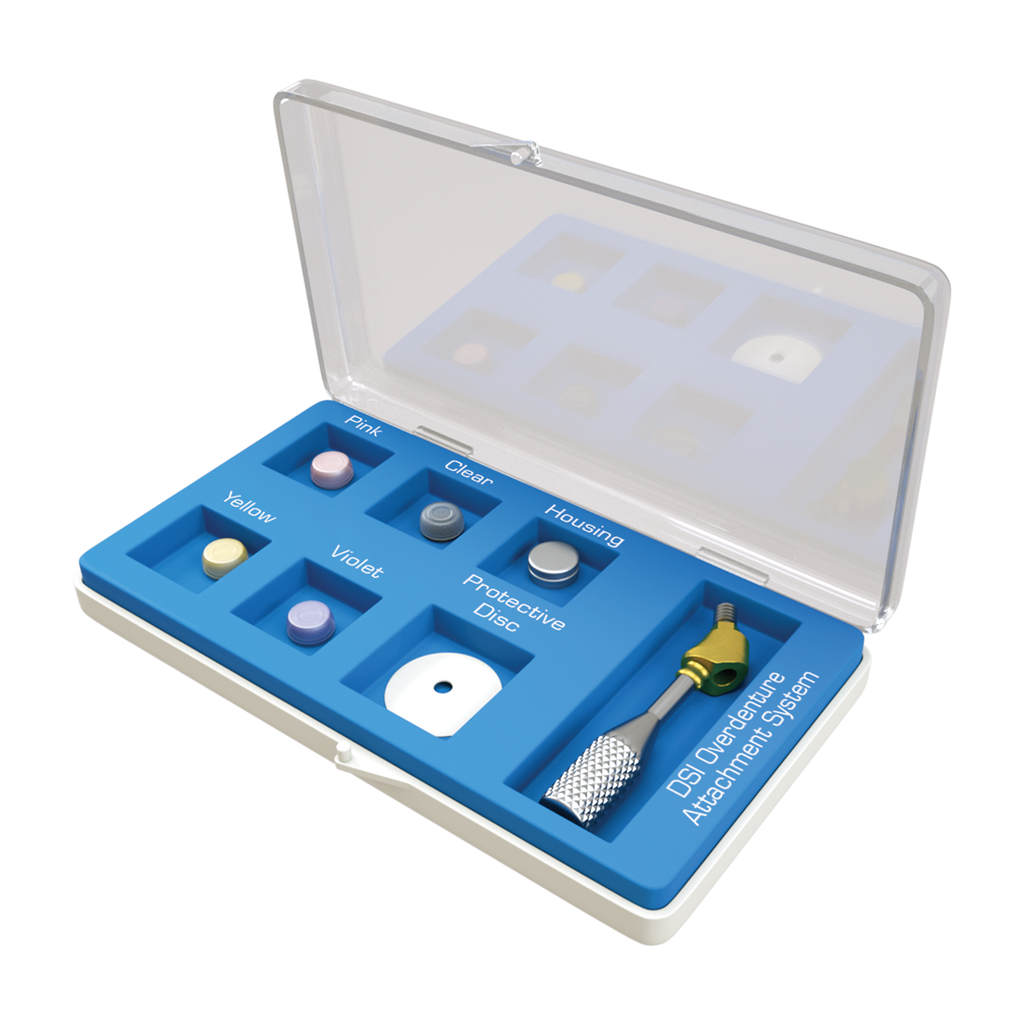

The most commonly used and versatile is the FULL SET, which includes:

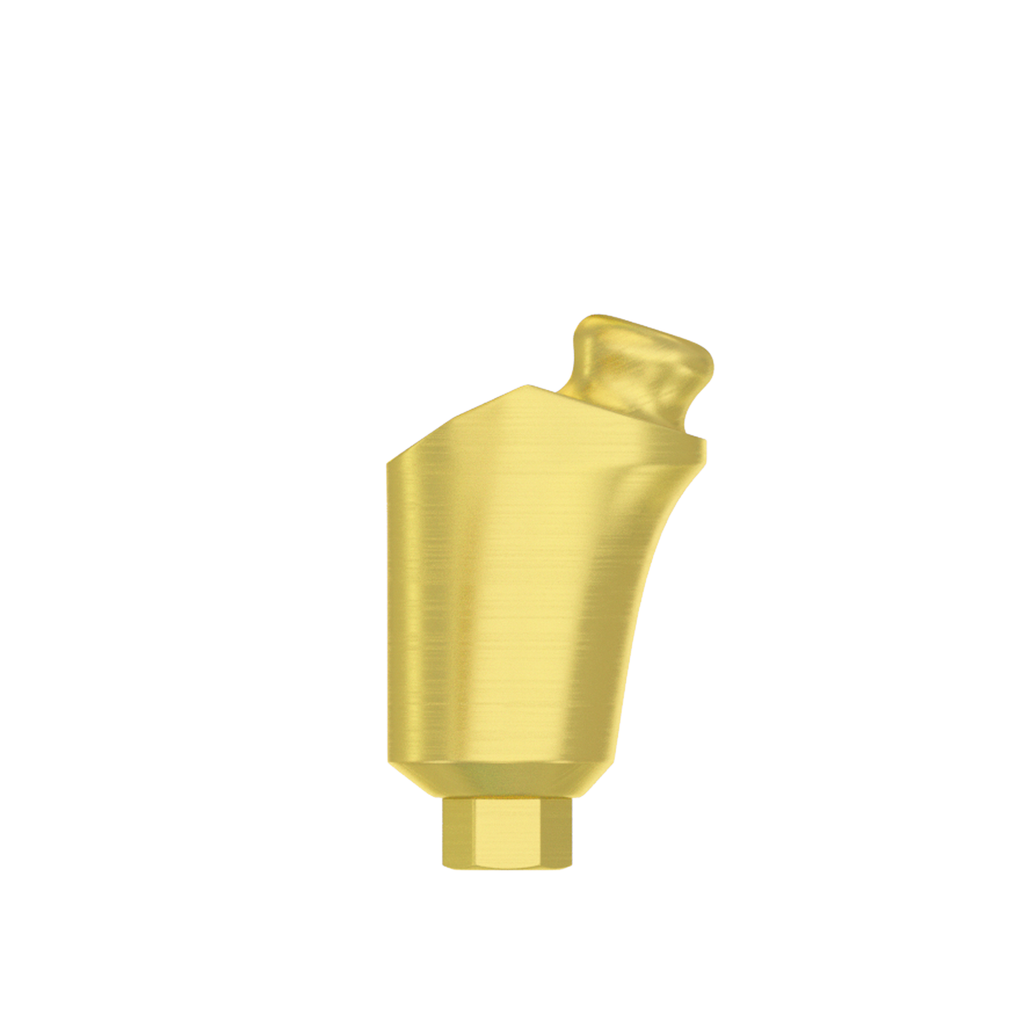

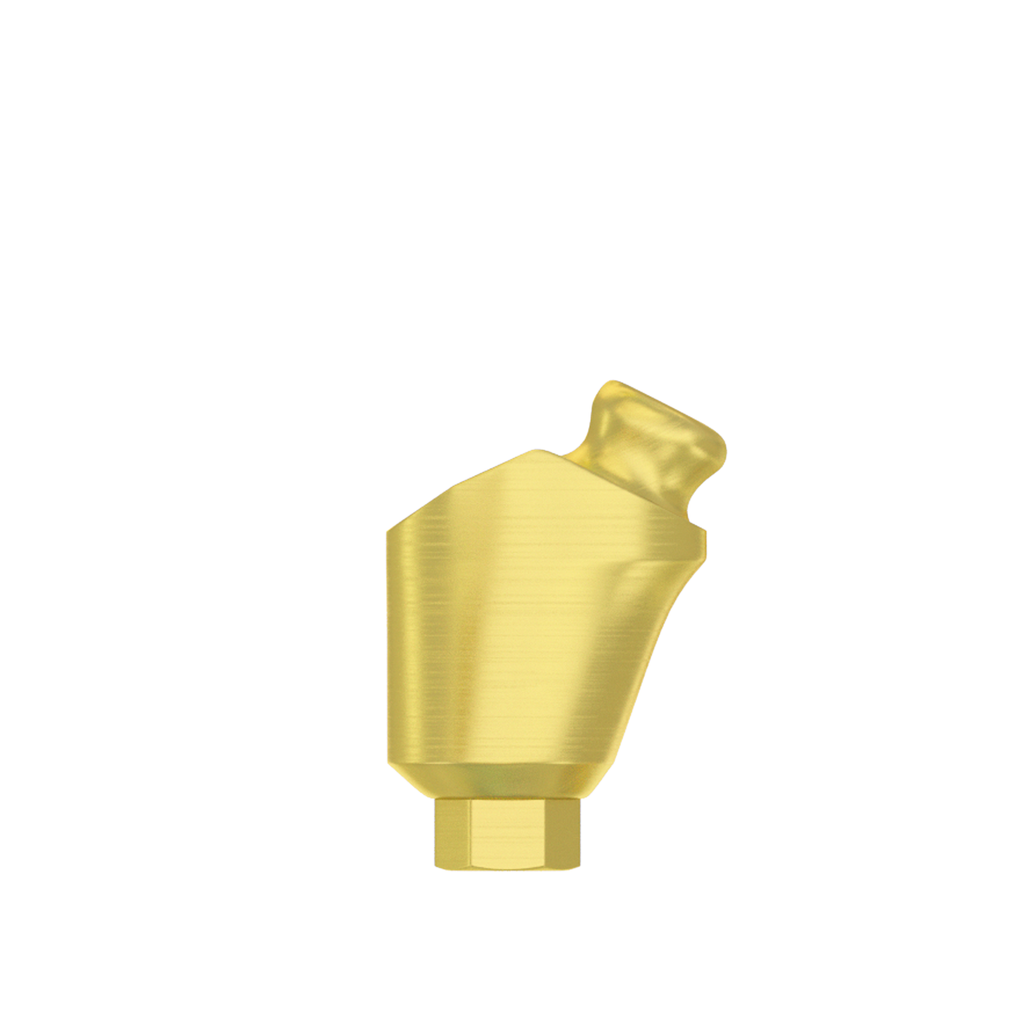

1. Angulated 18/30 Degrees DSI-LOCK Abutment 4.2mm 0.5-3mm  x1

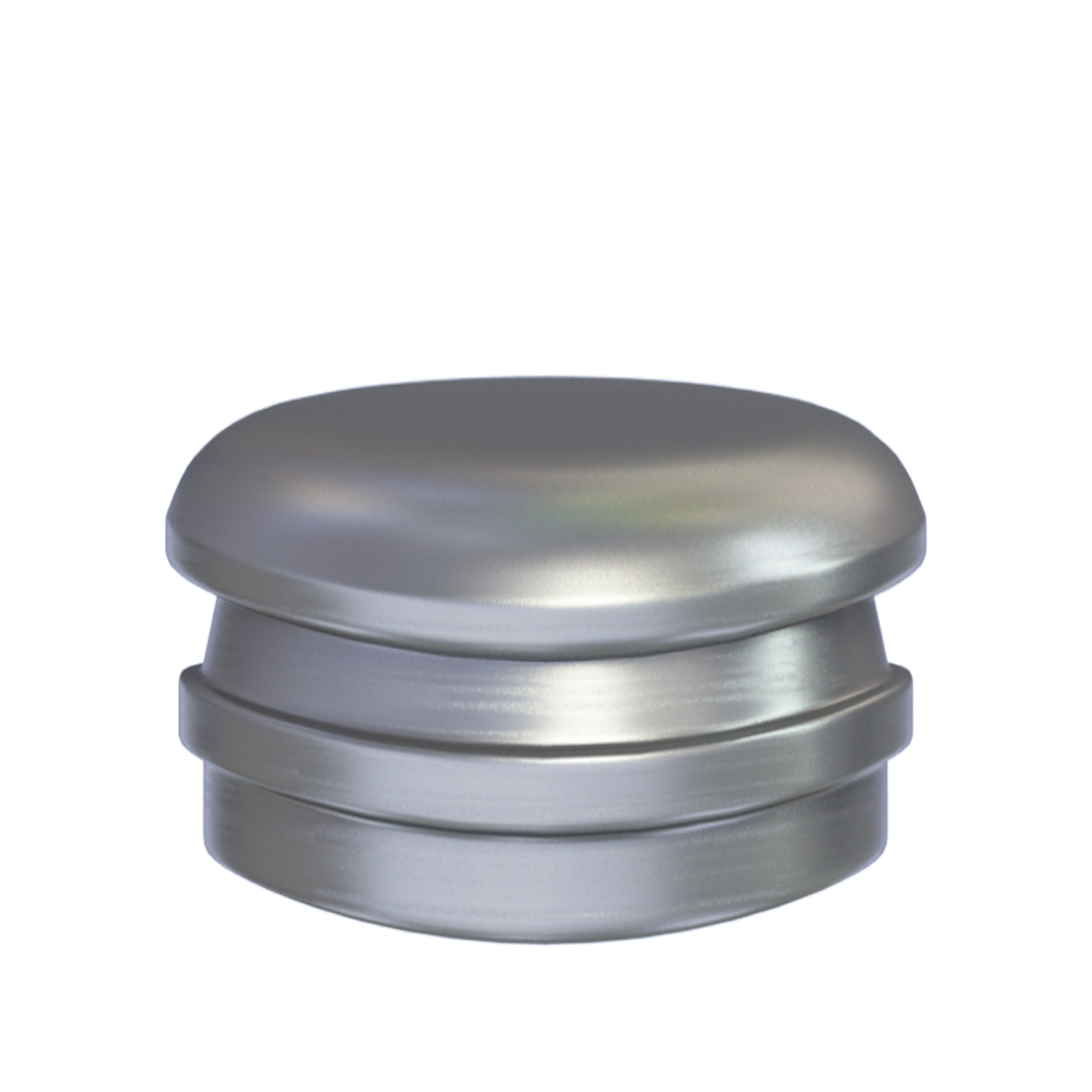

2. Silver Metal Housing (height 2.0mm) -Ø 5.6mm x 1

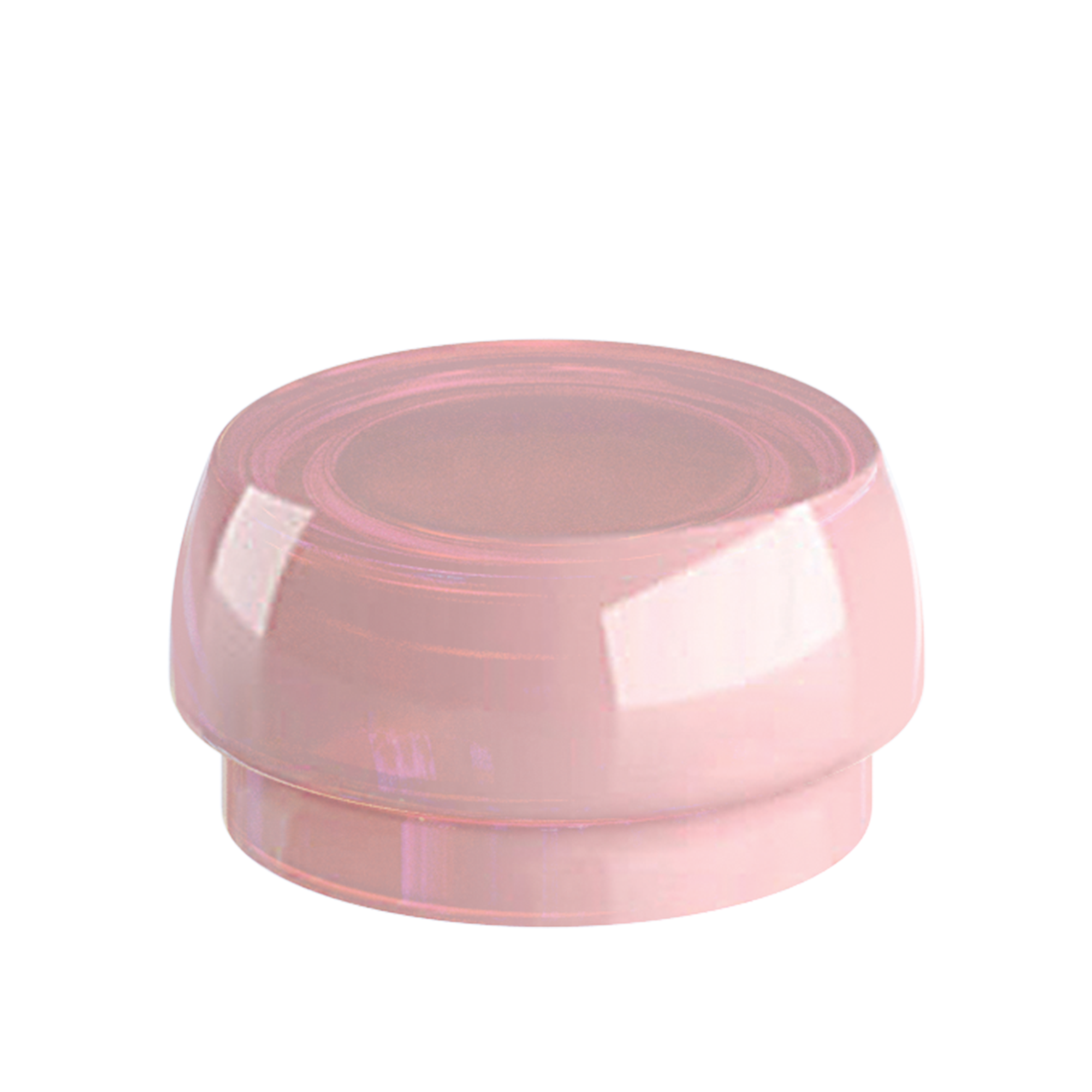

3. Pink Soft Cap 1.2kg/2.6lbs retention x 1

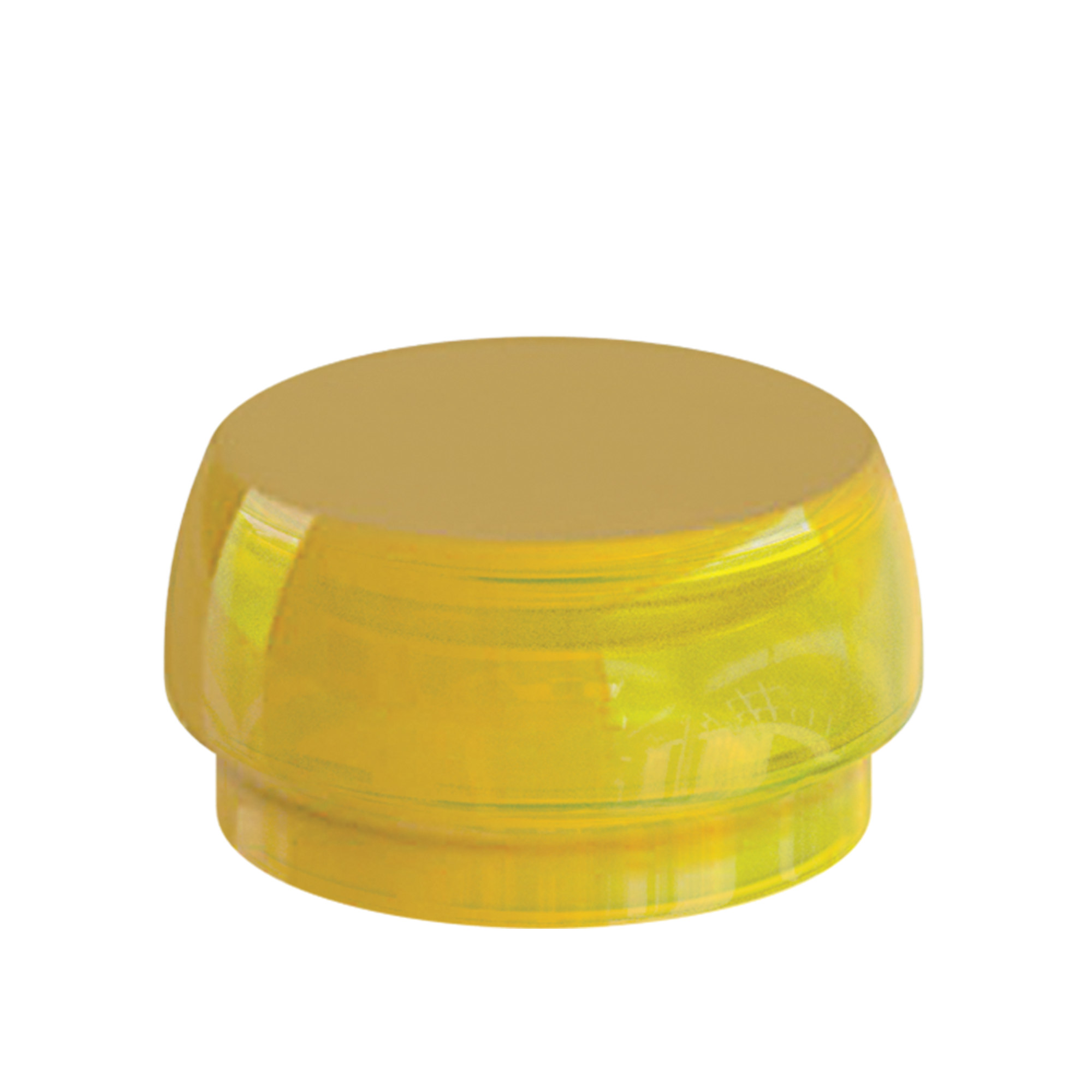

4. Yellow Extra-Soft Cap 0.6kg/1.3lbs retention x 1

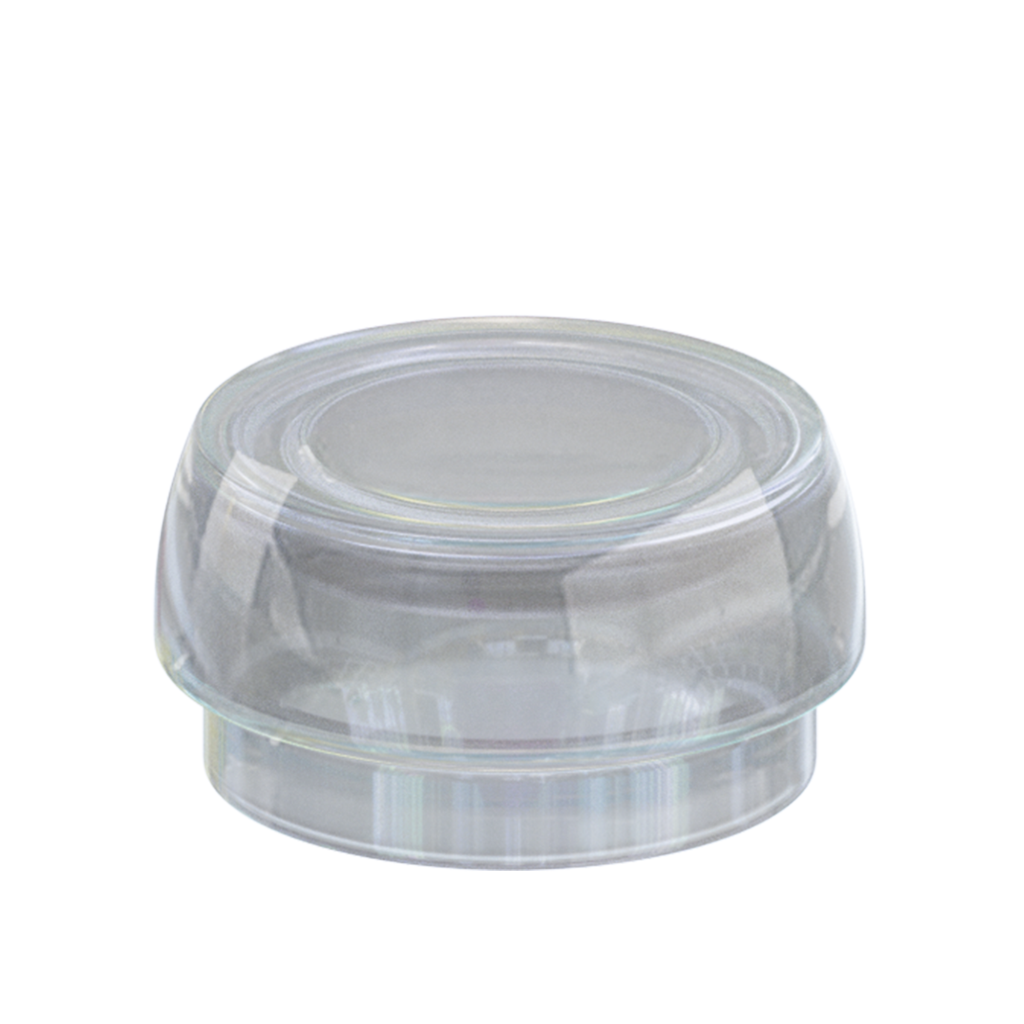

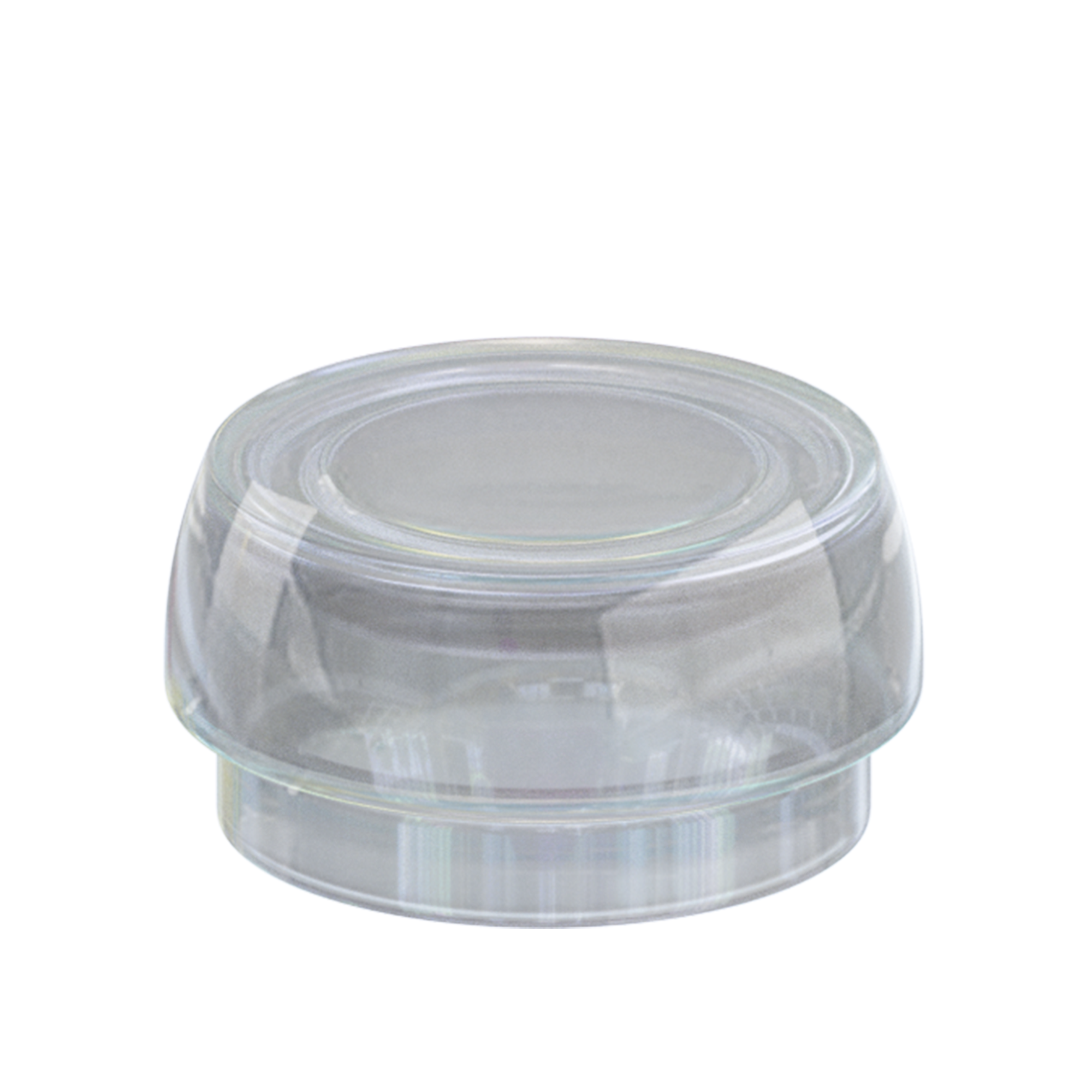

5. Clear Standard Cap 1.8kg/4.5lbs retention x 1

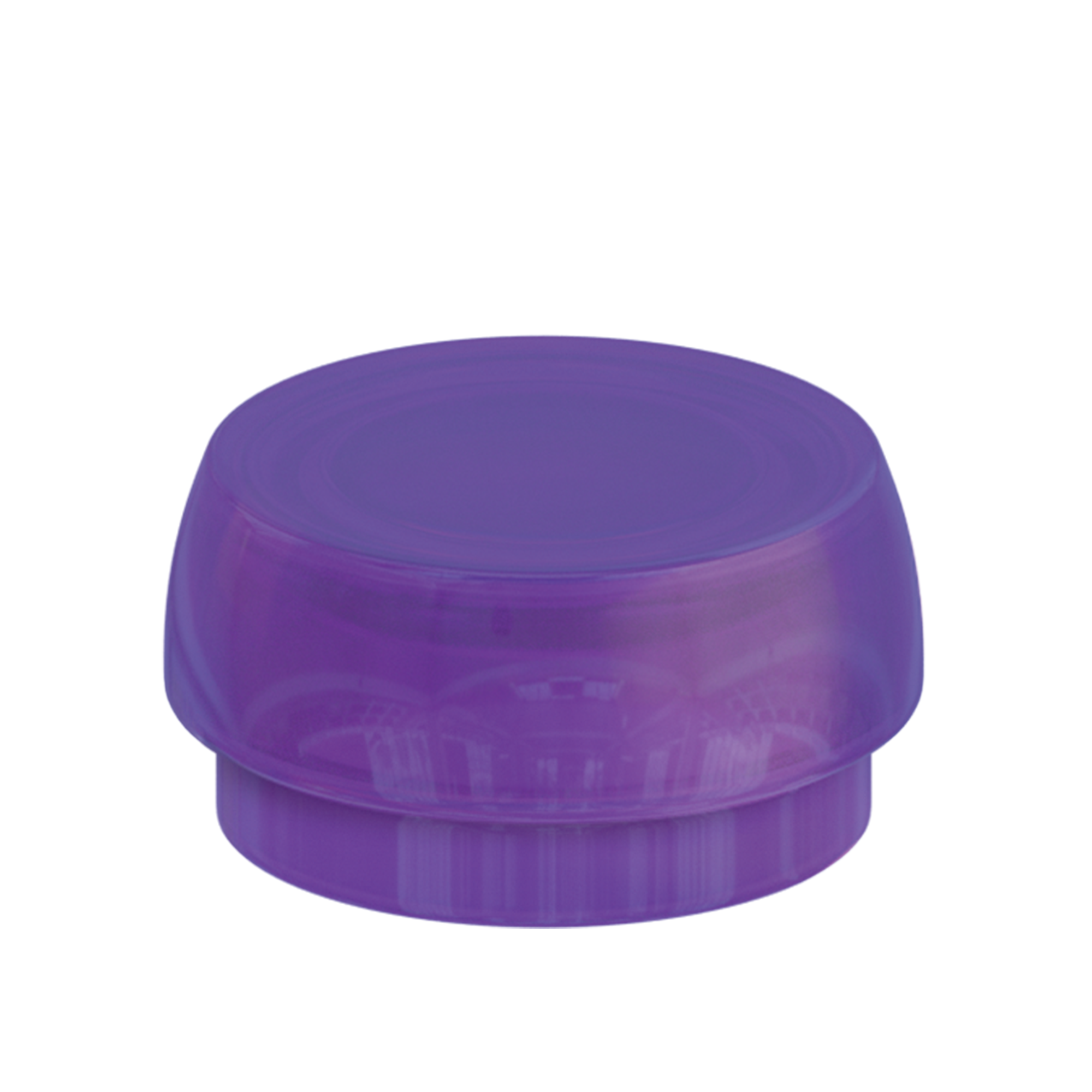

6. Violet Strong Cap 2.7kg/5.5lbs retention x 1
7. White Protective Disc Ø 14.0mm/Internal Ø1.6mm

Indications:

• Partial and full dentures
• All-on-4, All-on-6
• Denture conversion

• Single tooth restoration (very rare )
• For non-parallel implant alignment cases

Features:

• Internal hex connection is compatible with a major variety of implant brands.
• Available in 4 different collar heights.
• Full solid titanium body.
• Hygiene-friendly construction.
• Excellent biocompatibility.
• Ideal for use in in clinical situations with limited space
• Designed for easy placement
• Capable of correcting divergence between two implants up to 90 degrees
• The lowest vertical profiles available on the market today
• Extra resilient caps, will allow absorbing elevate masticatory forces without creating any damage to the implant

Technical information:

• Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Standard platform - Ø4.2mm / height 1.0-4.0mm
• Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
• 18° Degrees
• 30° Degrees
• Titanium fixation screw included with every abutment
